Samples of possible operating modes

Following a few samples of possible operating modes

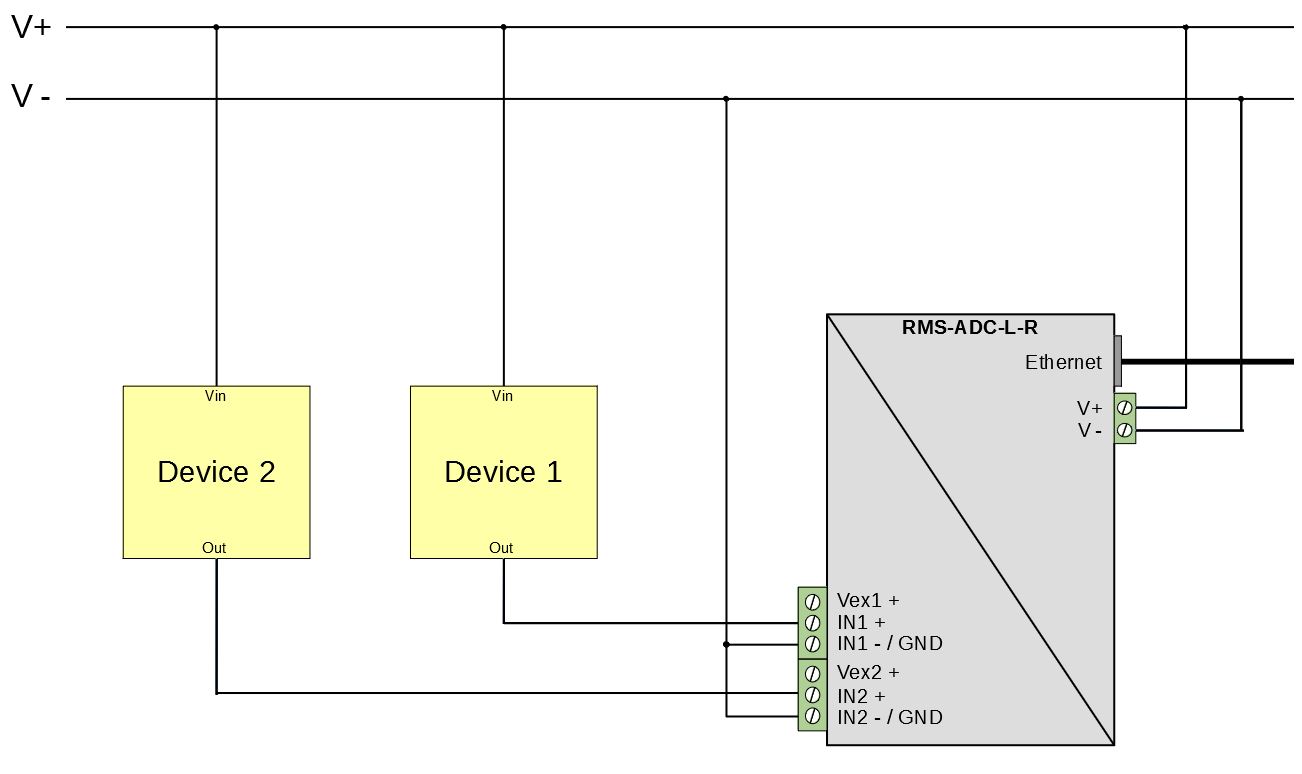

2-Wire connection with external power supply RMS-ADC-L-R_Option_2Wire_external_supply

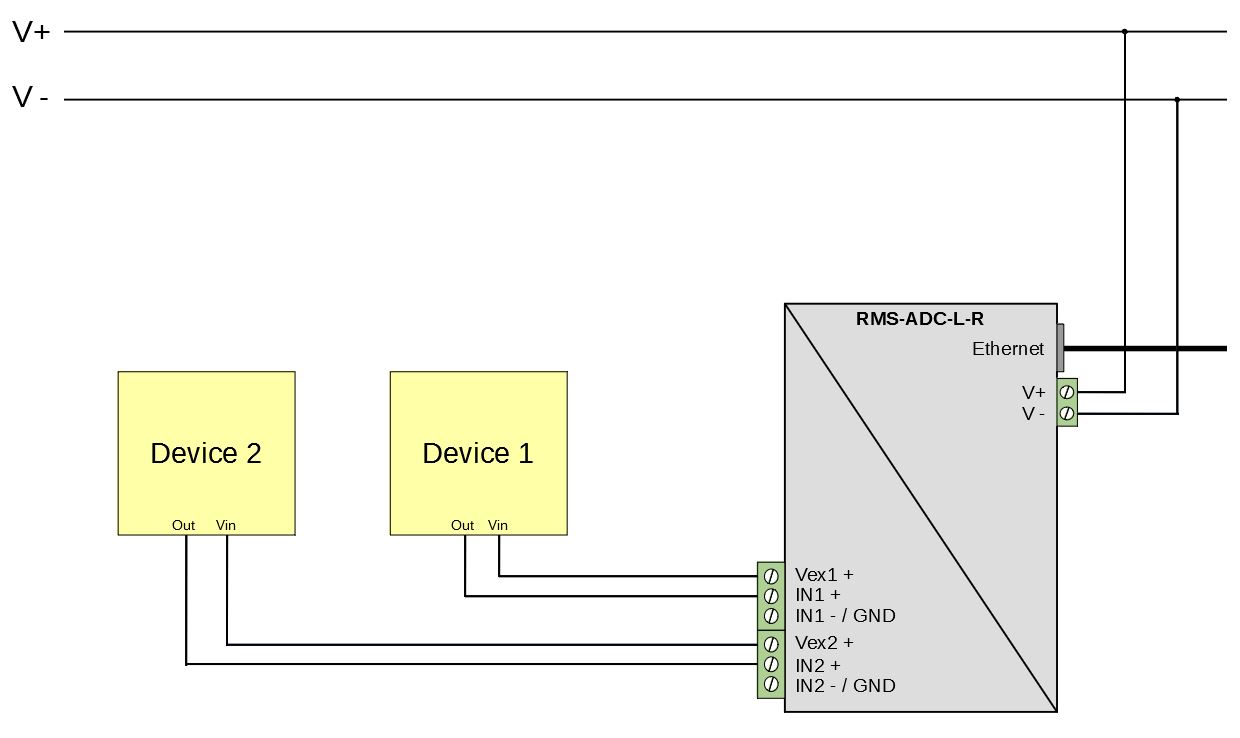

2-Wire connection with internal power supply RMS-ADC-L-R_Option_2Wire_internal_supply

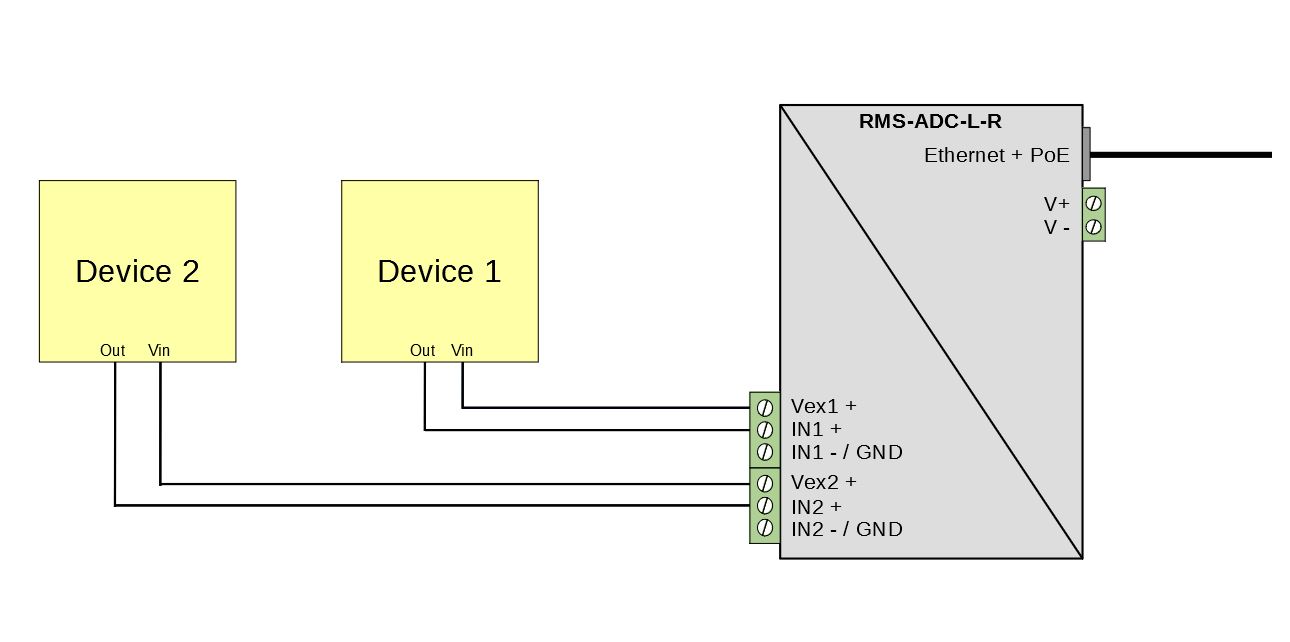

2-Wire connection with PoE (Power over Ethernet) RMS-ADC-L-R_Option_2Wire_PoE

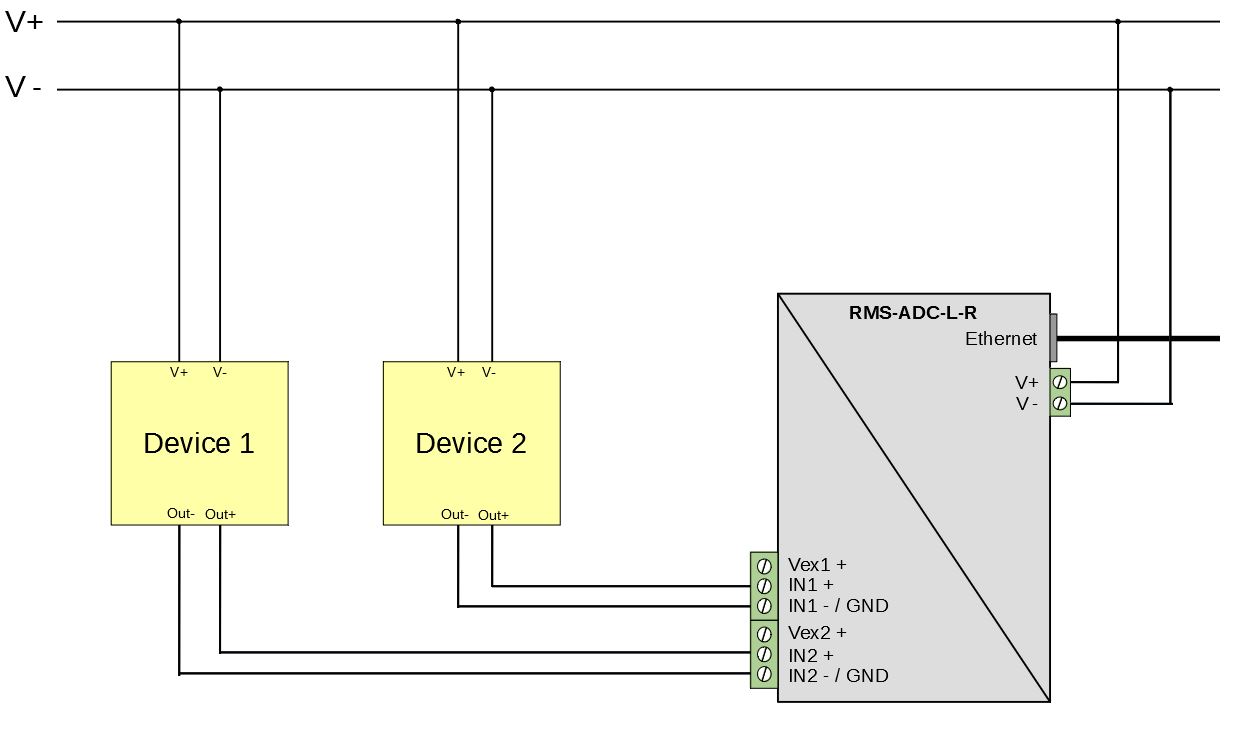

4-Wire connection with external power supply RMS-ADC-L-R_option_4Wire

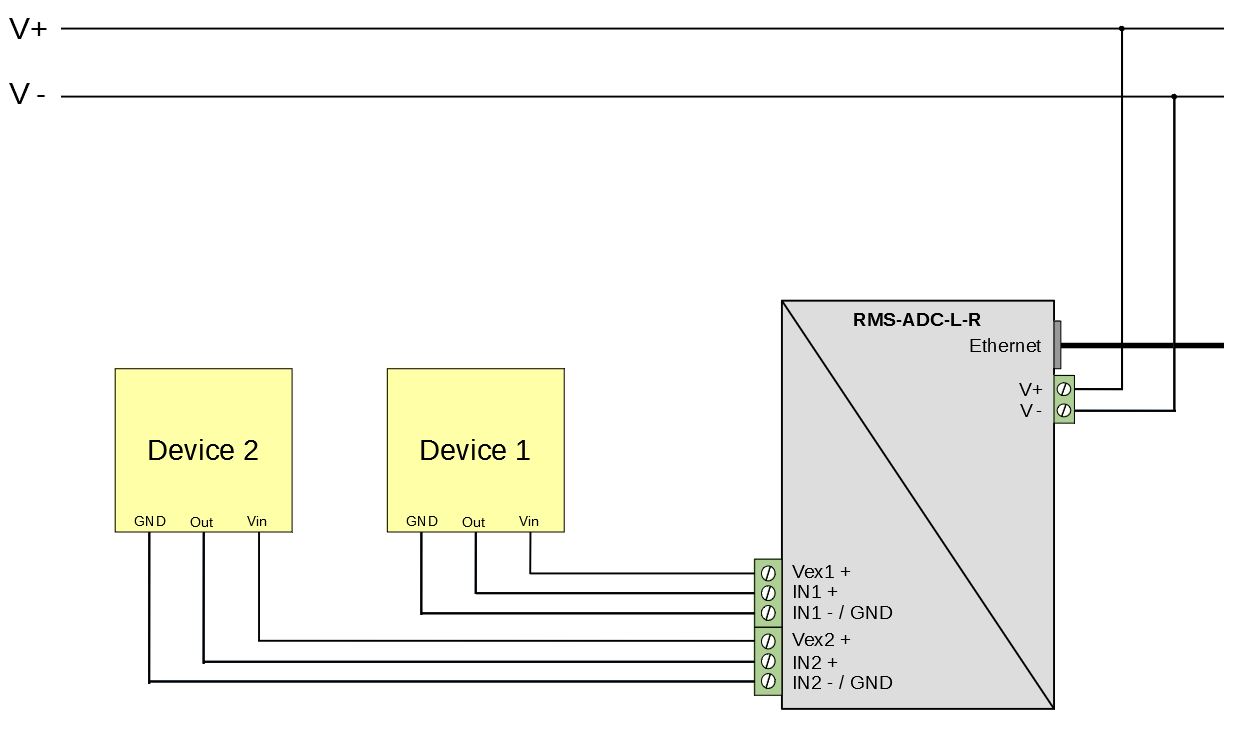

3-Wire connection with internal power supply RMS-ADC-L-R_Option_4Wire_internal_supply
