PCD-S¶

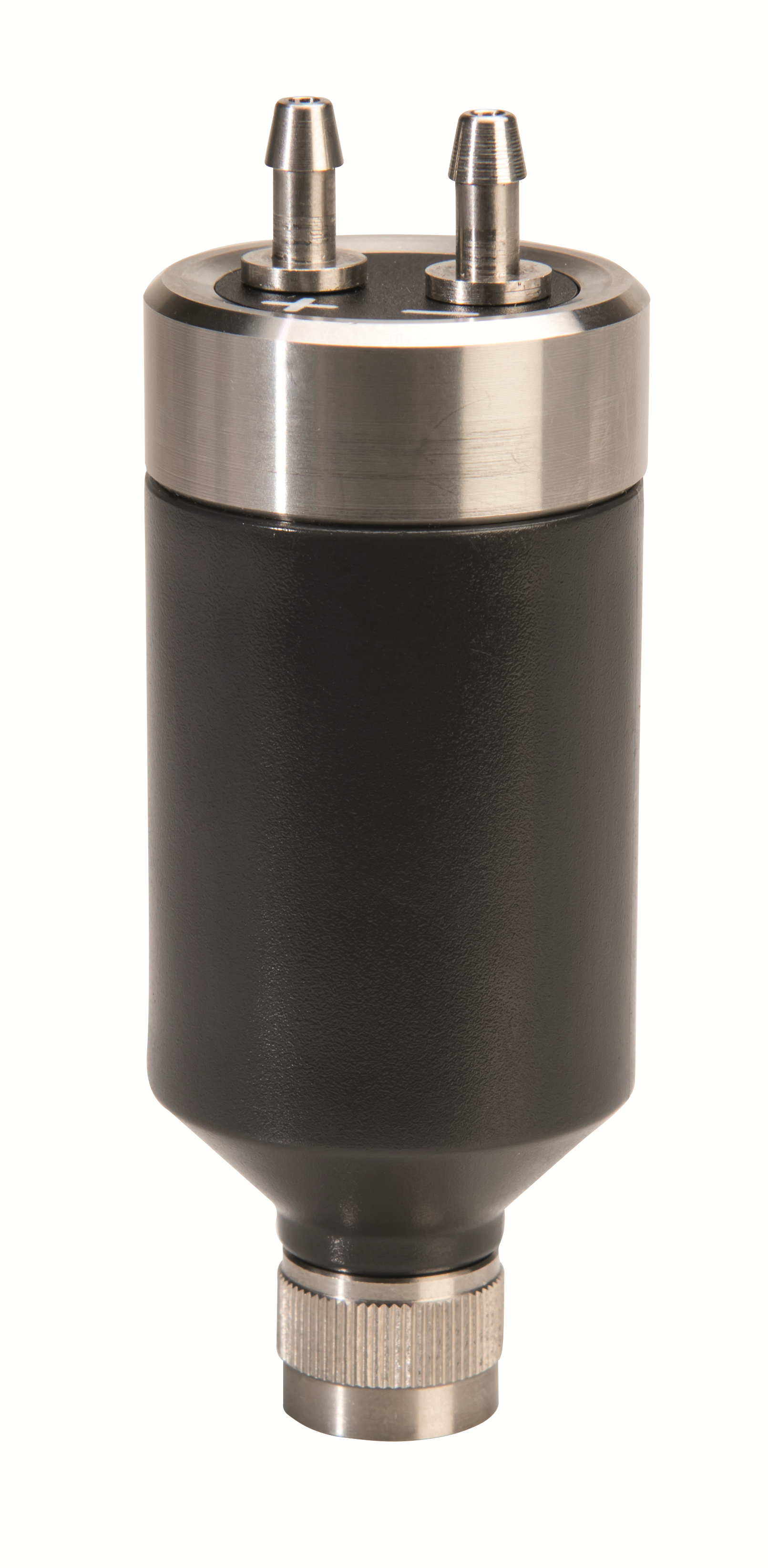

The PCD probe series is developed for use with all RMS data loggers. Compatible from firmware version RMS-LOG-868/915 (≥V1.5), RMS-LOG-L (≥V1.4) and the RMS-LOG-L-D.
The PCD can be operated independently using the RTU Modbus protocol, for example for integration into OEM applications. The following functions are available via the digital interface:
| Important: When using the PCD's to measure differential pressure and the reference 0 point is daisy chained via multiple PCD's, then please only use the Variant 2 - Membrane sensors and not the Variant 1 - Thermal mass flow flow sensors. The flow sensor leaks per design and as of such is not designed for this application. |
|---|
RMS-Config¶
This SW tool is used for configuration, customer adjustment and measurement using the probe out of the RMS SW.
The following information and function are available:
Hardware and software compatibility
The PCD is compatible only with RMS-generation devices. To change the PCD device configuration, the RMS-CONFIG software (≥V1.1.0) is required.
