Housing

Device Dimensions

Detailed dimensions of the RMS-LOG-W-D to assist in planning the installation space.

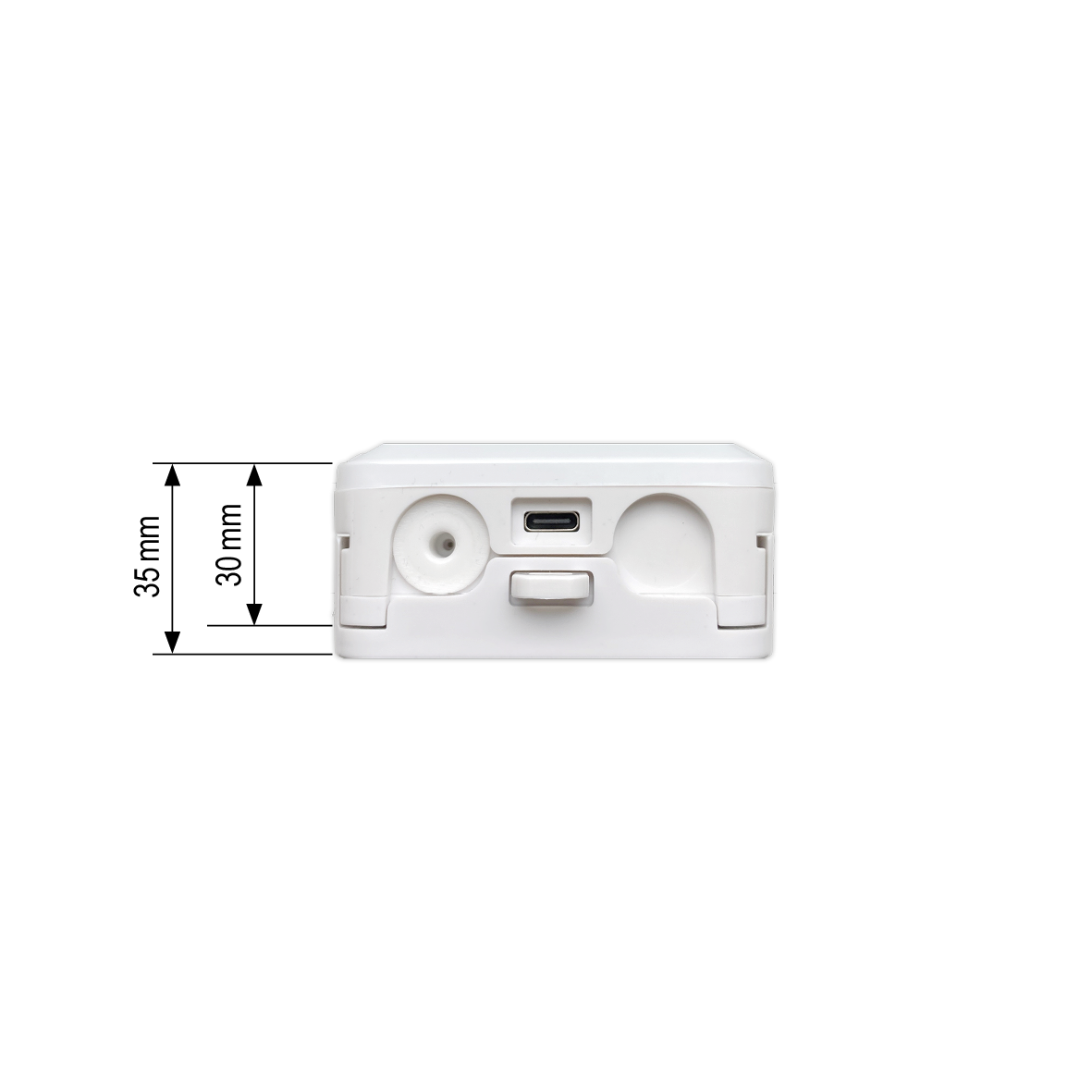

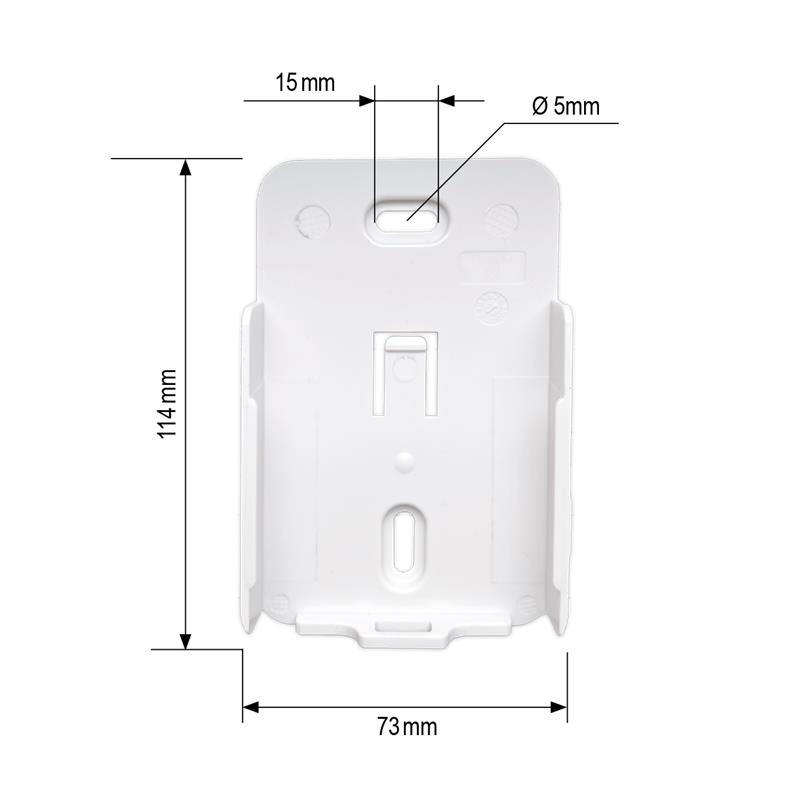

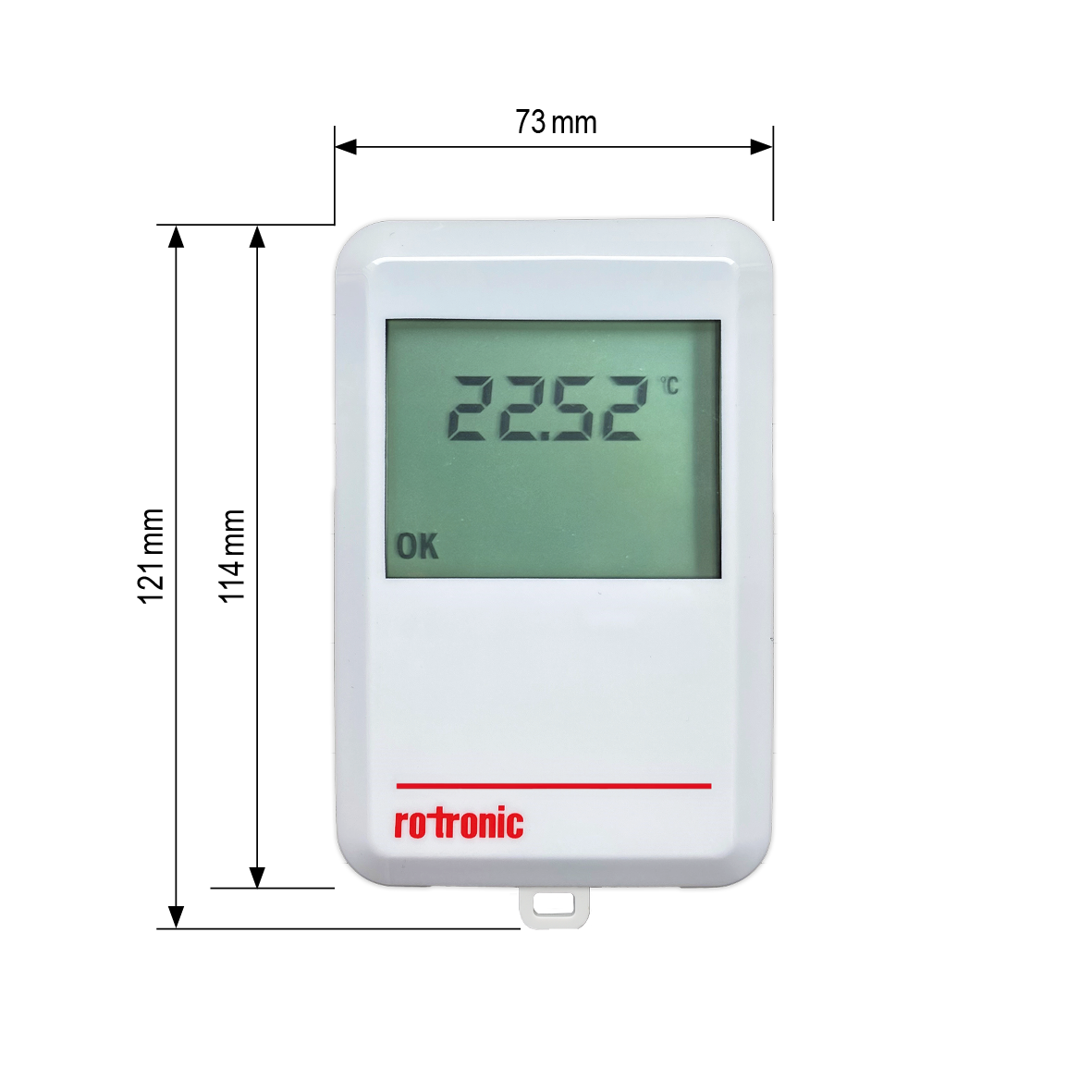

RMS_WiFi Data Logger_Dimensioning_front RMS_WiFi Data Logger_Dimensioning_back RMS_WiFi Data Logger_Dimensioning_side

General Information

Dimensions 74 x 120 x 35 mm3
Weight 176g with wall holder, without batteries
Housing material Macrolon 2458
IP IP65
UL UL94V2
Note:
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. For mounting the logger on a wall, the wall holder must be used.

Updated: 27.05.2025
