RMS-CONVERTER-100 cannot connect

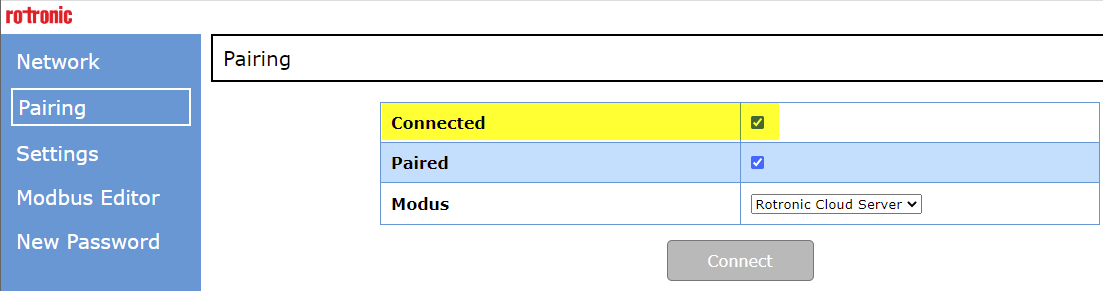

When adding a new RMS-CONVERTER-100, the connect should be automatically ticked.

rms-converter_connect

If it is not ticked, please check the following:

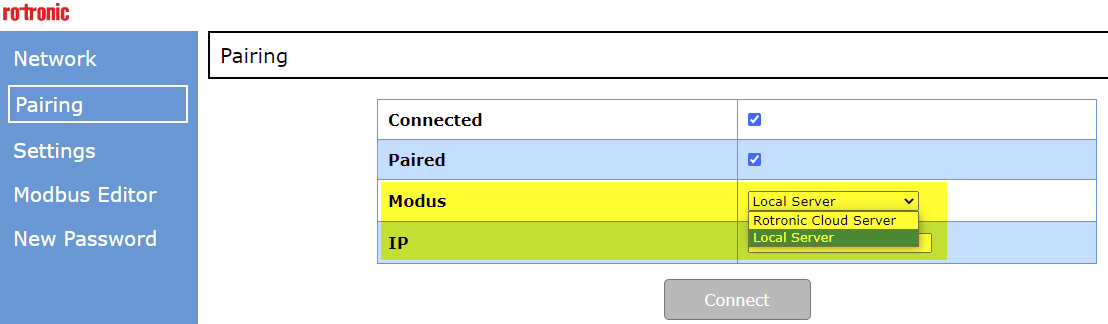

1) Ensure that the server settings are correct.

  • The RMS-CONVERTER-100 is originally set to communicate with the Rotronic Cloud Server
  • If a local server is being used, then the IP address of the server needs to be added.

rms-converter_connect 2

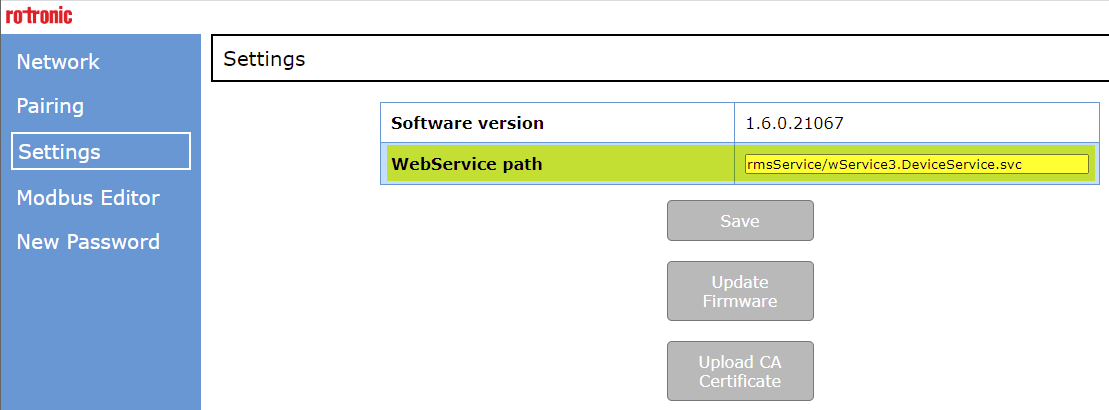

2) Ensure that the webservice path is correct:

rms-converter_connect 1

3) Ensure that the Port 80 is open in both directions (to and from the local or cloud server).
