Add an RMS-ADC-L-R to RMS¶
Device Configuration
| Step 1 | Open the RMS-Config SW | ||||
|---|---|---|---|---|---|
| Step 2 | Click on "Device" > "Search" > "Network devices"  \ |
Note: Please be sure that you always use the newest RMS-Config version. The newest devices do not work with the old RMS-Config version. \ |
\ | --- \ | |
| Note: Please be sure that you always use the newest RMS-Config version. The newest devices do not work with the old RMS-Config version. |
|||||

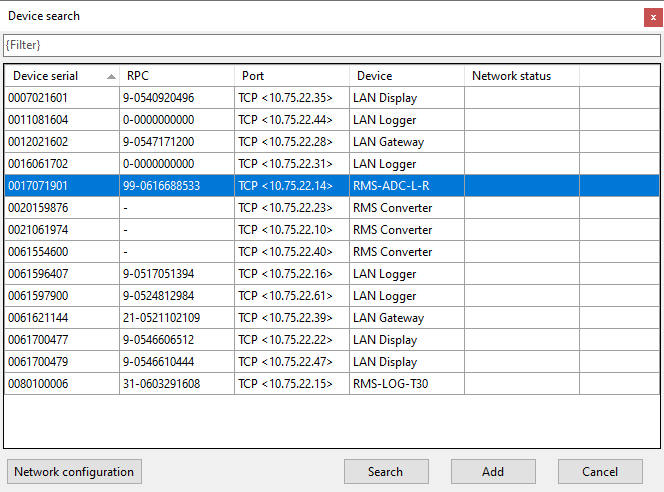

| Step 3 | Choose the device  |
||||

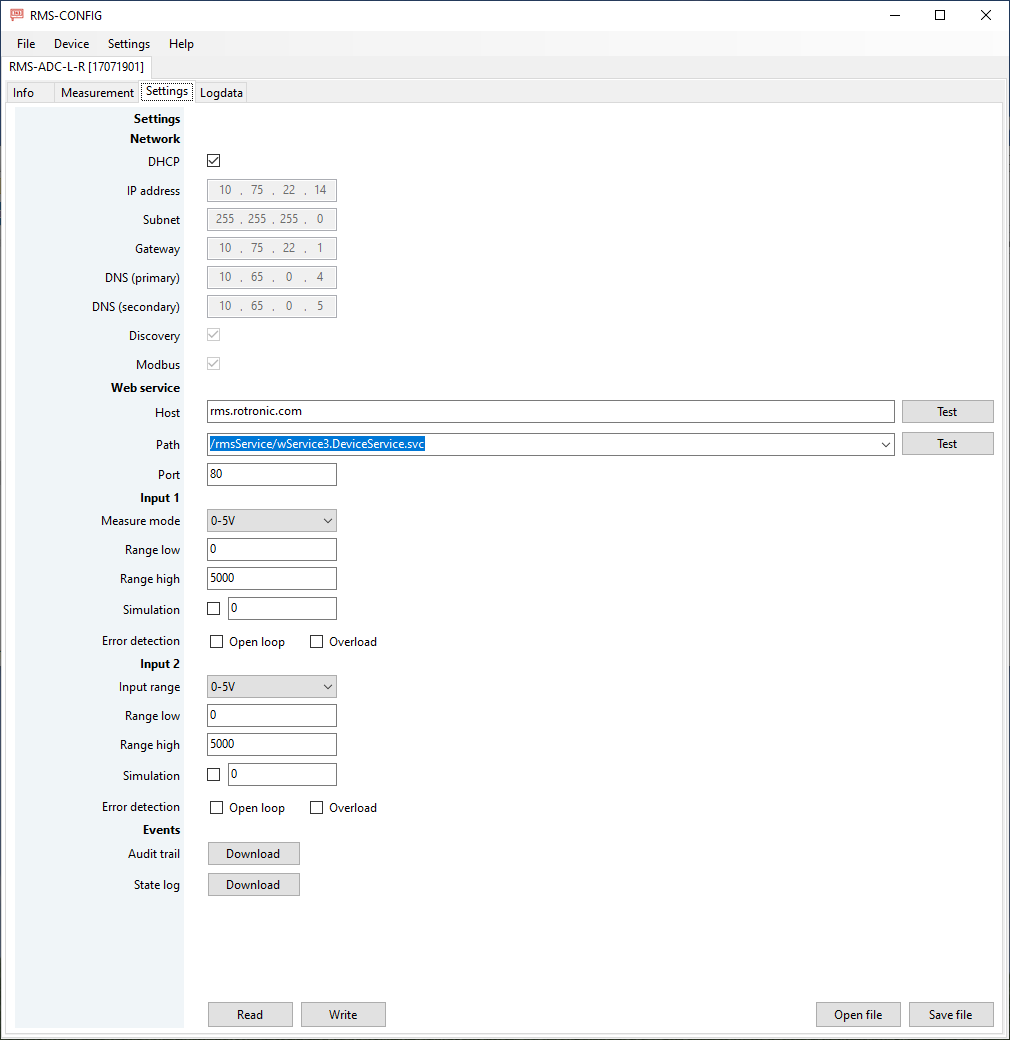

| Step 4 | Click "Add" > "Settings" and configure the network settings. Also the analog inputs can be configured here, but it can be done also within RMS. At the end, click "Write" to save the settings.  |
Pairing / Integration into RMS¶

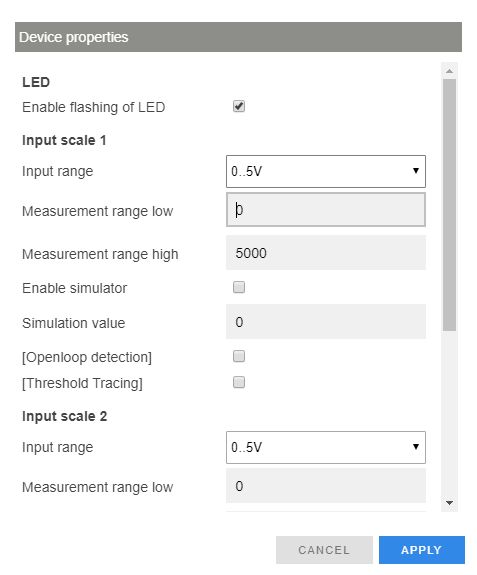

- Configure the properties of the analog inputs as needed and finish with a click on "Apply"
