Integration in the RMS-WEB Software

To integrate the device, port 80 must be enabled in your network and a DHCP server must assign the IP address to the device. The device must be able to reach the server with the RMS server software or the Cloud.

The devices can also be given a static IP address if there is no DHCP server available in the network.

Integration of the device (Pairing) in 6 Steps

Step 1 If you do not want to connect the device to the Rotronic Cloud, the server must be configured in the device.
Step 2 Log in to the RMS software / Cloud. Select "Extras" > "Setup" > "Devices" > "New LAN Device"
RMS-Do-L-R_Integration of the device 1
Step 3 Enter the serial number of the device. The device flashes orange.
RMS-Do-L-R_Integration of the device 2
Step 4 Press the button on the device briefly. The device stops flashing.
RMS-Do-L-R_Integration of the device 3

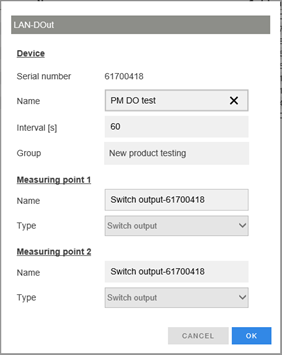

Step 5 Configure the device.
RMS-Do-L-R_Integration of the device 4
Step 6 Finish configuration.
RMS-Do-L-R_Integration of the device 5

You can find details in the instruction manual for the RMS server software: E-SM-RMS-WEB
