Calibration Option 2

This option is valid for any company wishing to calibrate an RMS wireless logger.

Important: The wireless logger needs to be deactivated within the RMS software. With RMS-Config, only 1 wireless device can be added at a time.

Requires:

1 * RMS wireless logger

1 * RMS-Config software.

1 * RMS-DONGLE-868/915.

Step 1	Place the wireless logger in the calibration environment. Plug the RMS-DONGLE-868/915 a computer USB port. Open the RMS-CONFIG software.

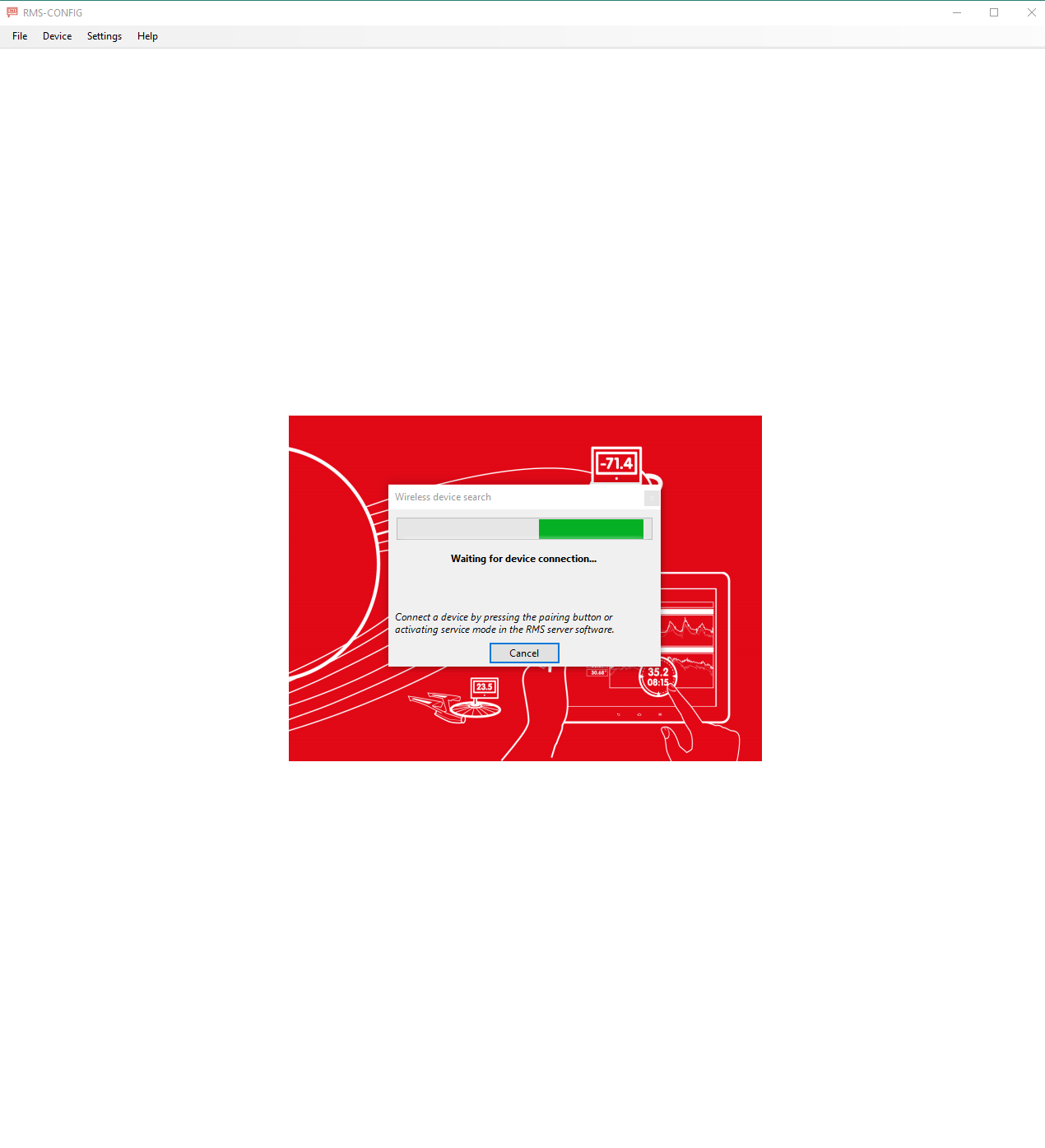

Step 2	Open the RMS-CONFIG software. Click on "Device" > "Search" > "Wireless devices":
Step 3	Unpair the wireless logger: push on the button for 8s. The wireless logger will blink 3 x red. Push on the button once: the logger will blink orange and connect to RMS-CONFIG:
Step 4	Click on the Adjust tab:
Step 5	When possible, select the measurement value to be calibrated:
Step 6	Follow the internal calibration procedures. Enter the reference value shown on the reference and click on acquire:
Step 7	The acquired points will be added to acquired points:
Step 8	Carry out all of the necessary calibration points. The data found within the acquired points is the calibration data with the as found values.

Important: This is only a calibration and not an adjustment.

Adjust: Click on adjust to adjust the probe. Why Adjust?

Delete point: Delete an acquired point if required.

Delete all points: Delete all points if required.

Restore factory adjust: Restore the factory adjustment if required.
