Calibration Option 4

This option is valid for any company wishing to calibrate an RMS LAN logger.

Important: The LAN logger needs to be deactivated within the RMS software. Calibration is only possible with the RMS-LOG-T30-L, as the digital probes are not seen within via the RMS-LOG-L device. For all other LAN devices please see the Calibration Option 1. The RMS-ADC-L-R cannot be calibrated within RMS.CONFIG, only the scaling can be made.

Requires:

1 * RMS LAN logger

1 * RMS-Config software.

Step 1	Place the LAN logger in the calibration environment. Ensure that the logger is connected to the LAN network. Open the RMS-CONFIG software.

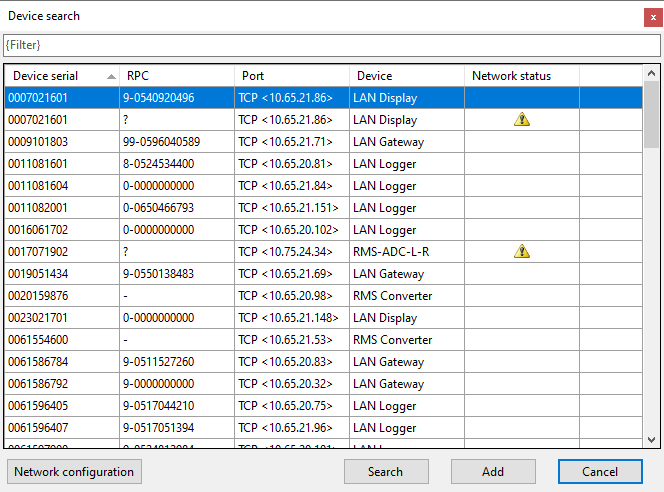

Step 2	Open the RMS-CONFIG software. Click on "Device" > "Search" > "Network devices", the list of network devices will appear:

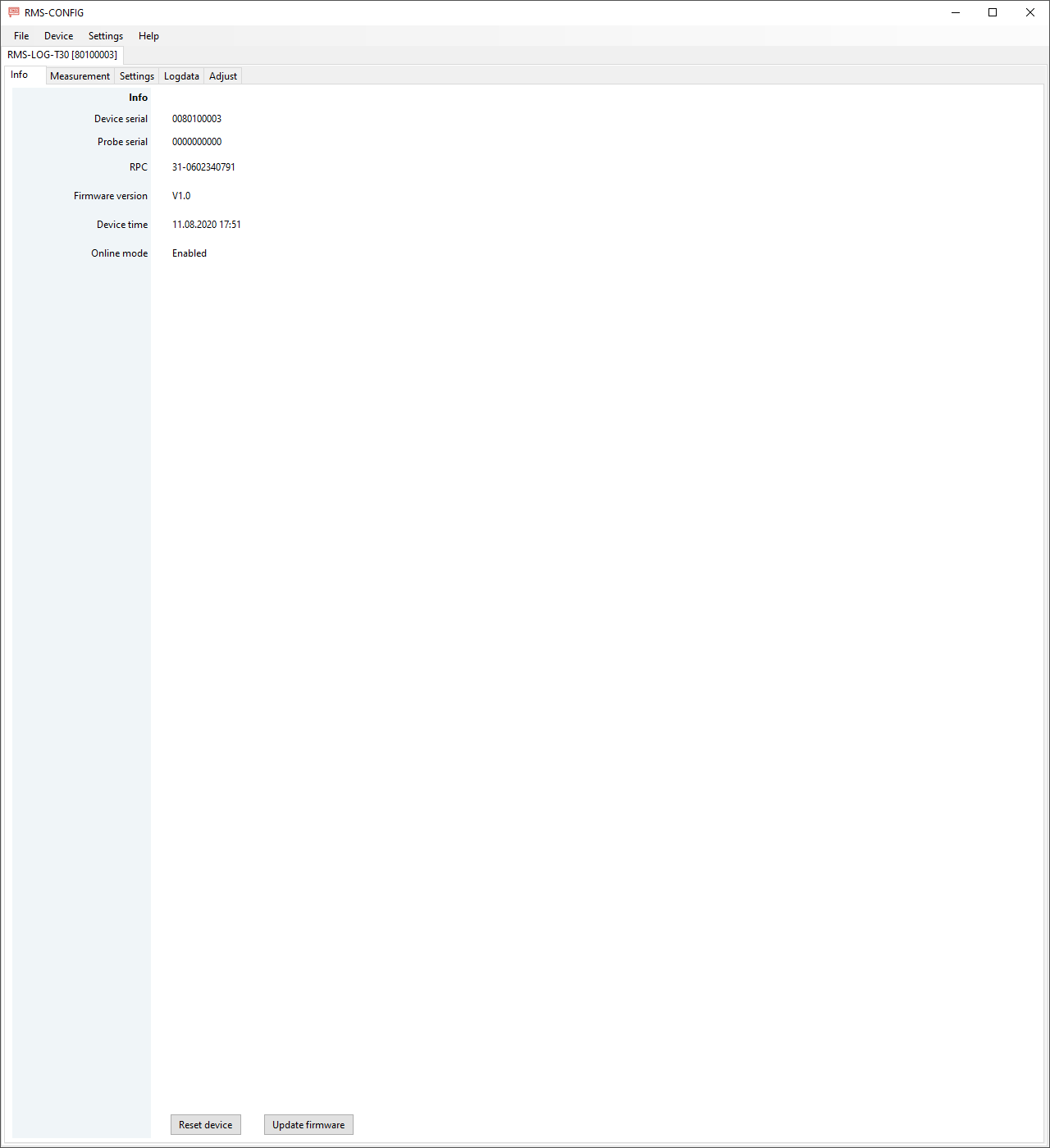

Step 3	Select the required device and click on "Add":
Step 4	Click on the Adjust tab:

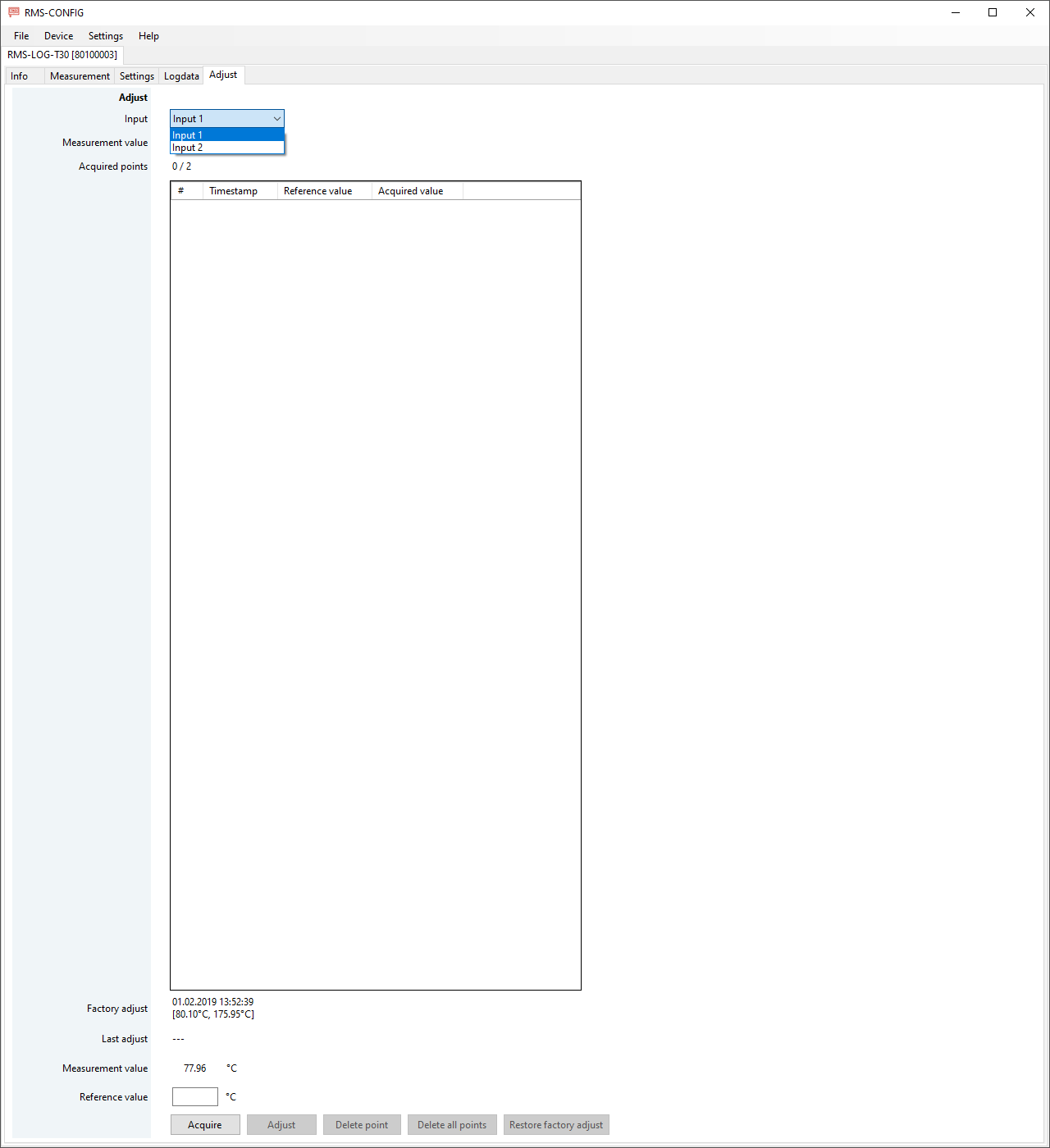

Step 5	Select the required input:

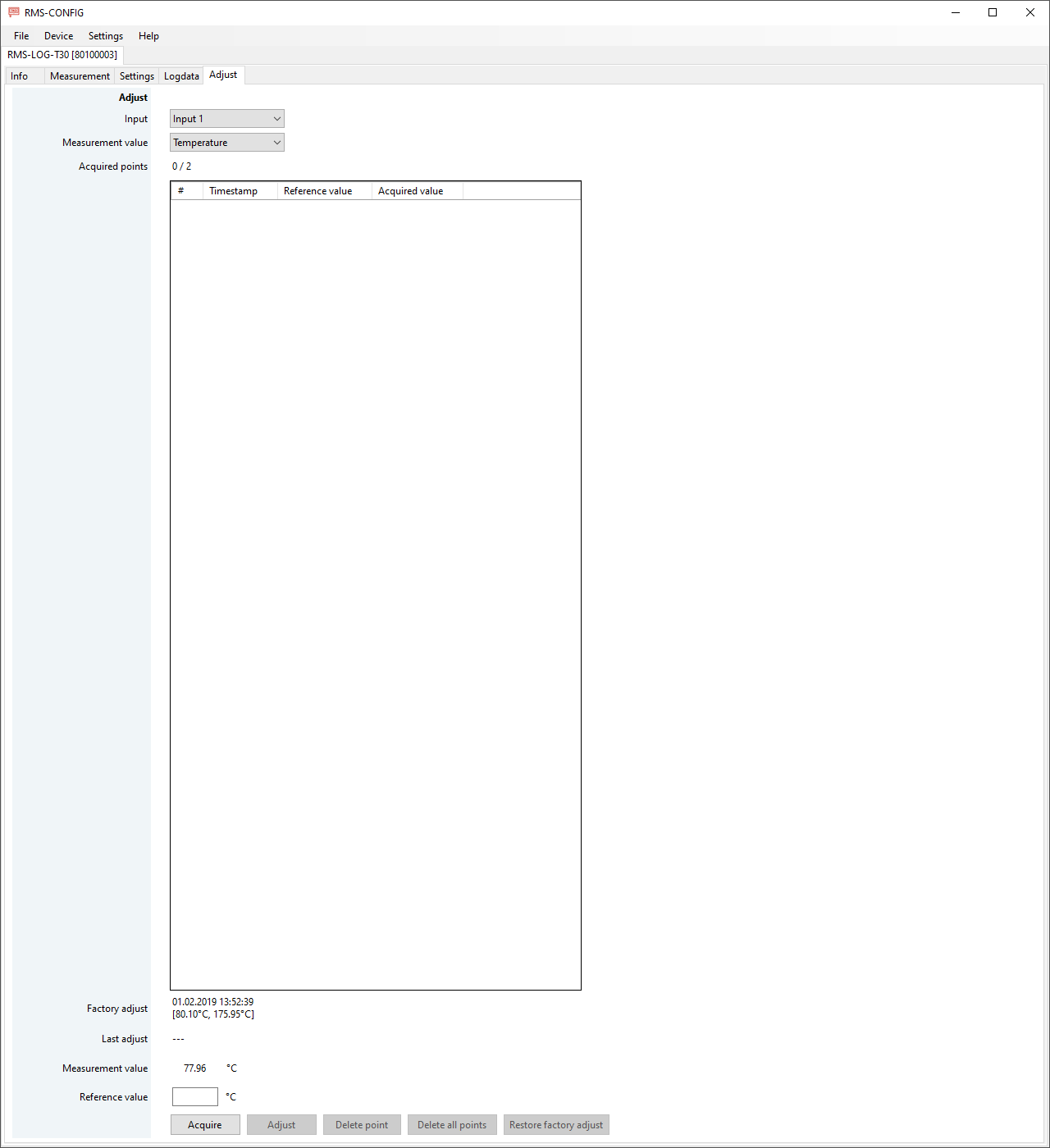

Step 6	Follow the internal calibration procedures. Enter the reference value shown on the reference and click on acquire:
Step 7	The acquired points will be added to acquired points:
Step 8	Carry out all of the necessary calibration points. The data found within the acquired points is the calibration data with the as found values.

Important: This is only a calibration and not an adjustment.

Adjust: Click on adjust to adjust the probe. Why Adjust?

Delete point: Delete an acquired point if required.

Delete all points: Delete all points if required.

Restore factory adjust: Restore the factory adjustment if required.
