Update to V2.3.0 of the RMS Software

Important:
As soon as the Rotronic Monitoring System >V2.0.0 has been uploaded, please update all RMS-GW devices with the latest firmware version: Update Firmware.
Please reach out to Rotronic for more details: [email protected].

Installing Multiple Instances.

Follow these guidelines for the installation of the V2.3.0

Prerequisites:

  • A previous version of RMS is already installed

  • The current version is hosted in IIS on the site “Default Web Site” and named “RMS” and “wService”

  • The new RMS Files are unzipped in the folder “C:\inetpub\wwwroot\RMS\21347”

  • The “connection.config” file contains the correct information for the database connection

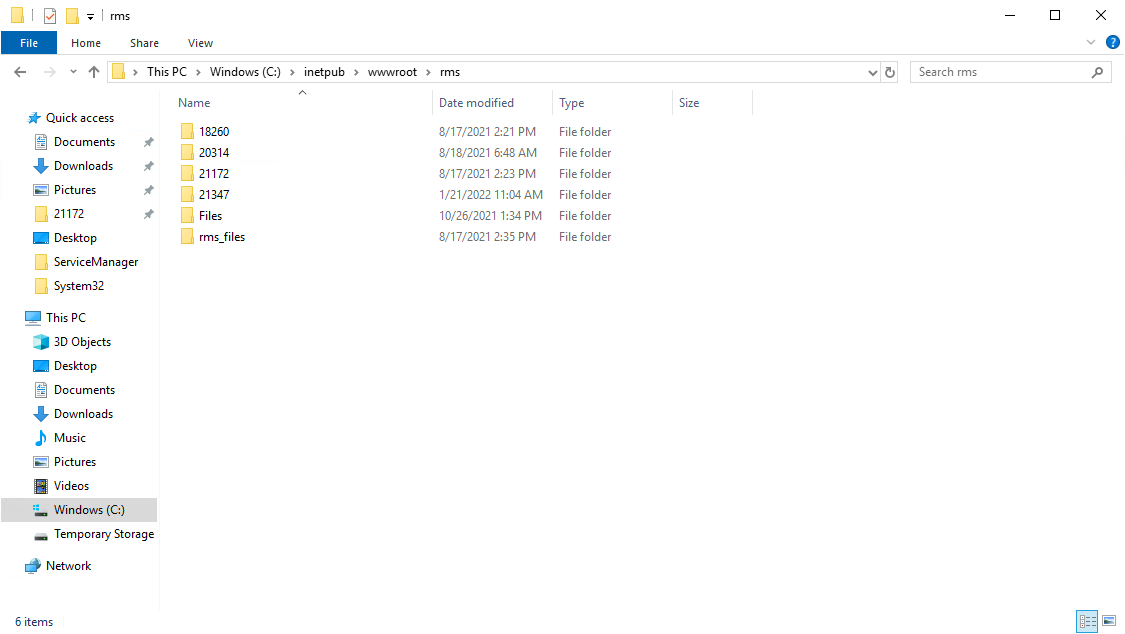

Step 1 Unzip the new version and copy it into a folder with the version number parallel to the currently installed version: "C://inetpub/wwwroot/rms/{version}".
clip0108

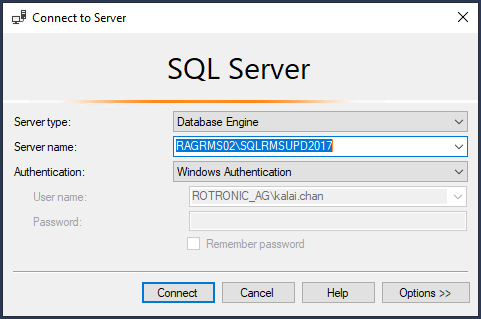

Step 2 Login to the SQL Server as ADMIN or SA user:
UpdateRmsFrom131To210_02
Step 3 Create a backup of the RMS database:
install software 2

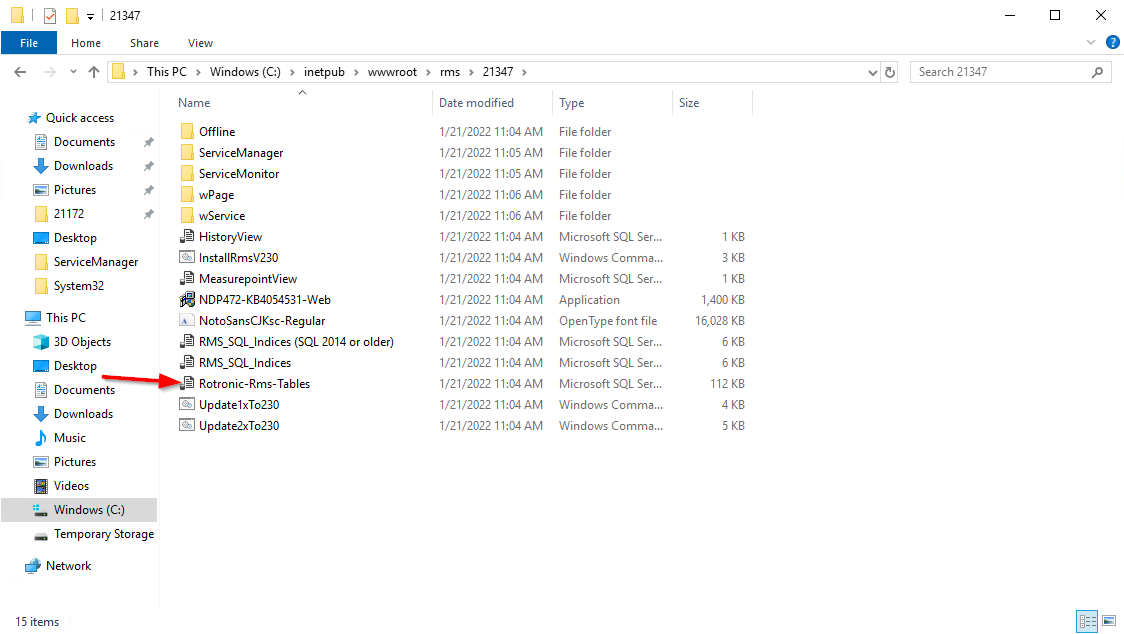

Step 4 Update the database tables using the "Rotronic-RMS-Tables".Click on "open file" and double click on the folder to update.
clip0113l

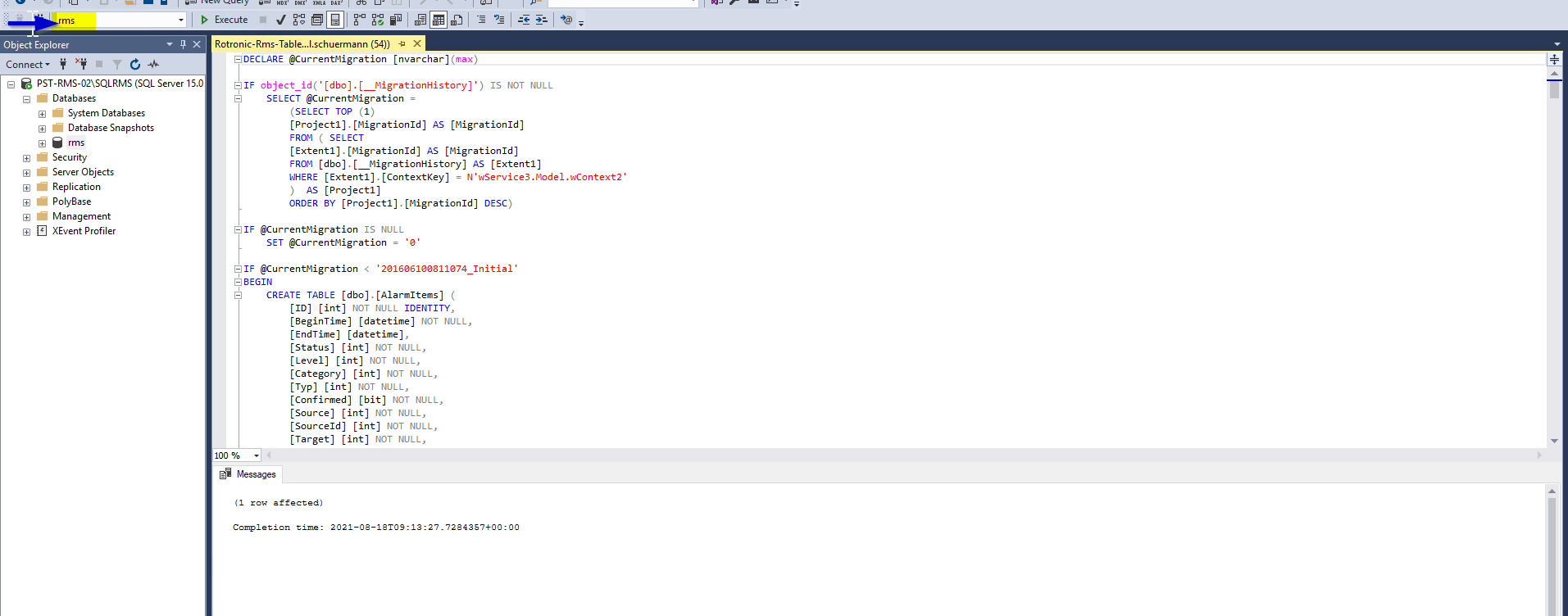

The following data will be shown and click on execute. Please check before execute in which database you will run this script. The rms database should be shown in the left top field!
clip0119

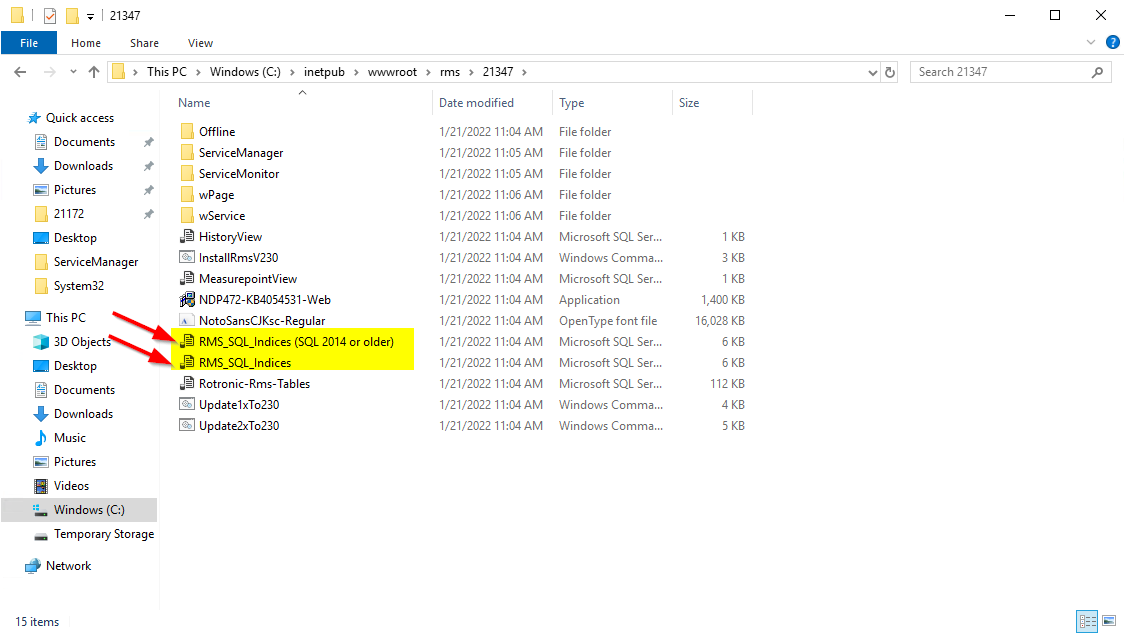

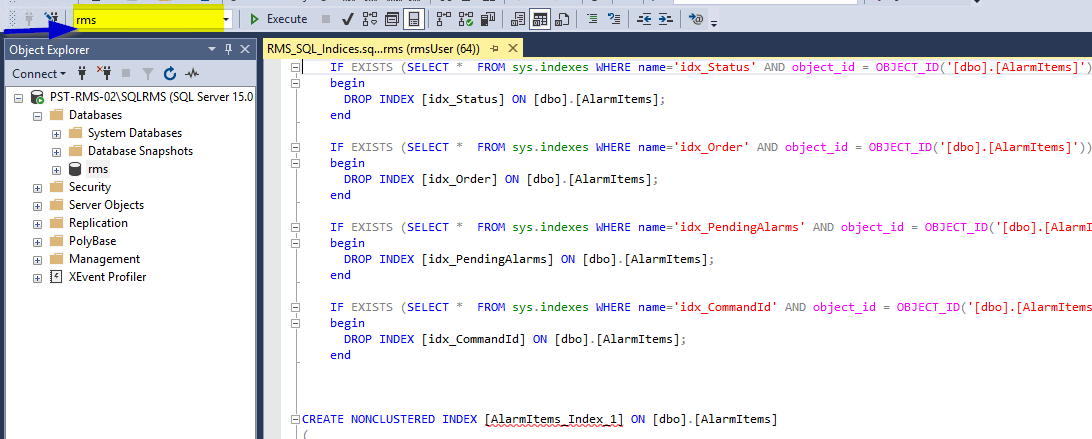

Step 5 If the Software Version is same or higher as V1.3.X, double click on the "RMS_SQL_Indices" to upgrade and execute it. Please check with SQL Version is running on the server.
Please check before execute in which database you will run this script. The rms database should be shown in the left top field!
clip0114
clip0118

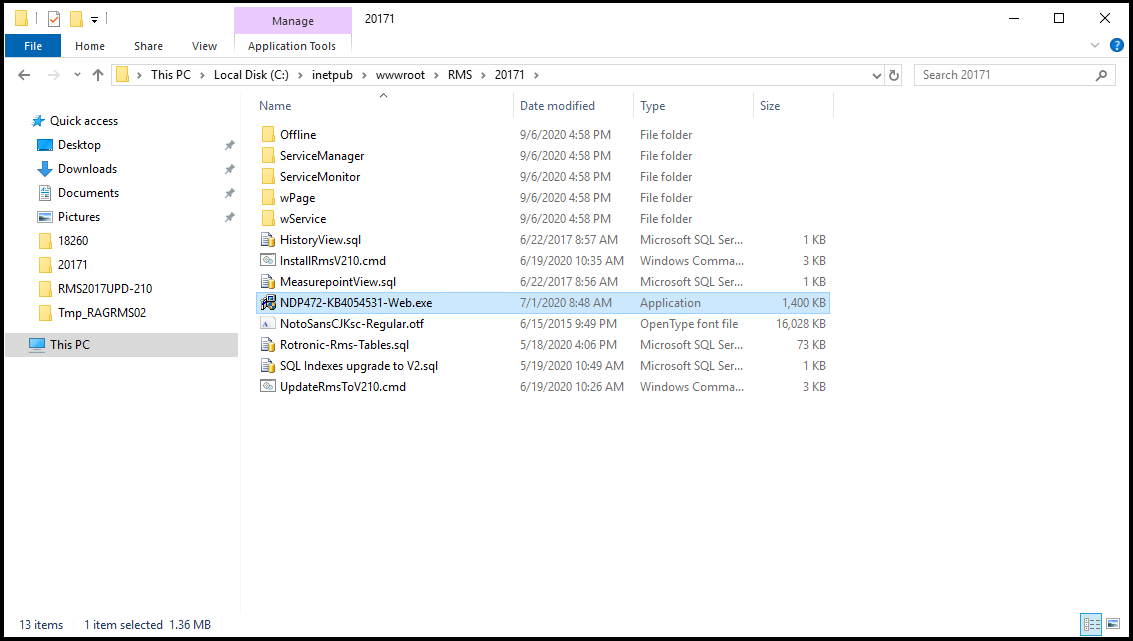

Step 6 Install the .Net Framework V4.7.2 or newer, double click on the file NDP472-KB4054531-WEB.exe:
UpdateRmsFrom131To210_06

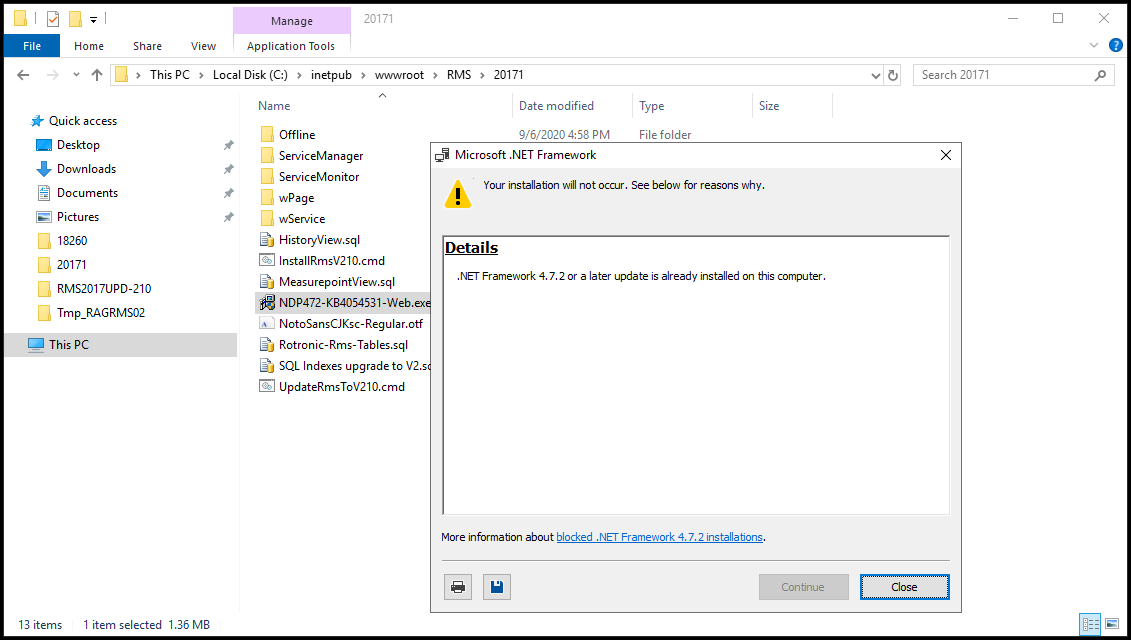

When prompted click on continue to install the .NET framework or close if it is already installed:
UpdateRmsFrom131To210_07
Step 7 Check the existing settings can be found in "web.config" in folder \wService of the current RMS Installation. (DO NOT CHANGE ANYTHING IN THIS "web.config").

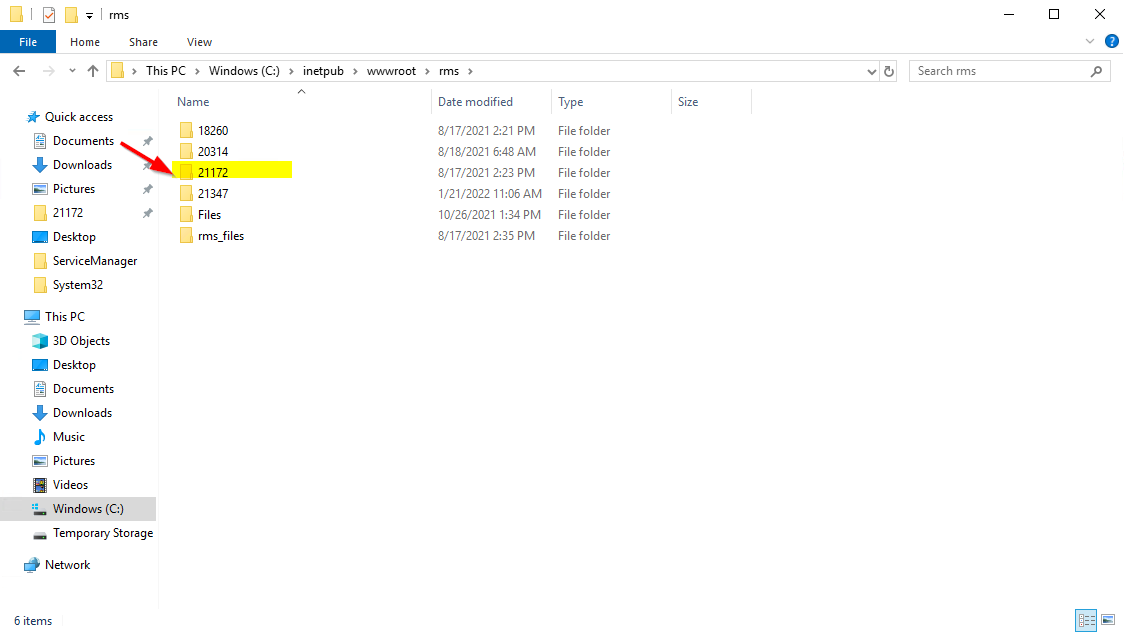

The current RMS installation can be seen under C:
clip0095

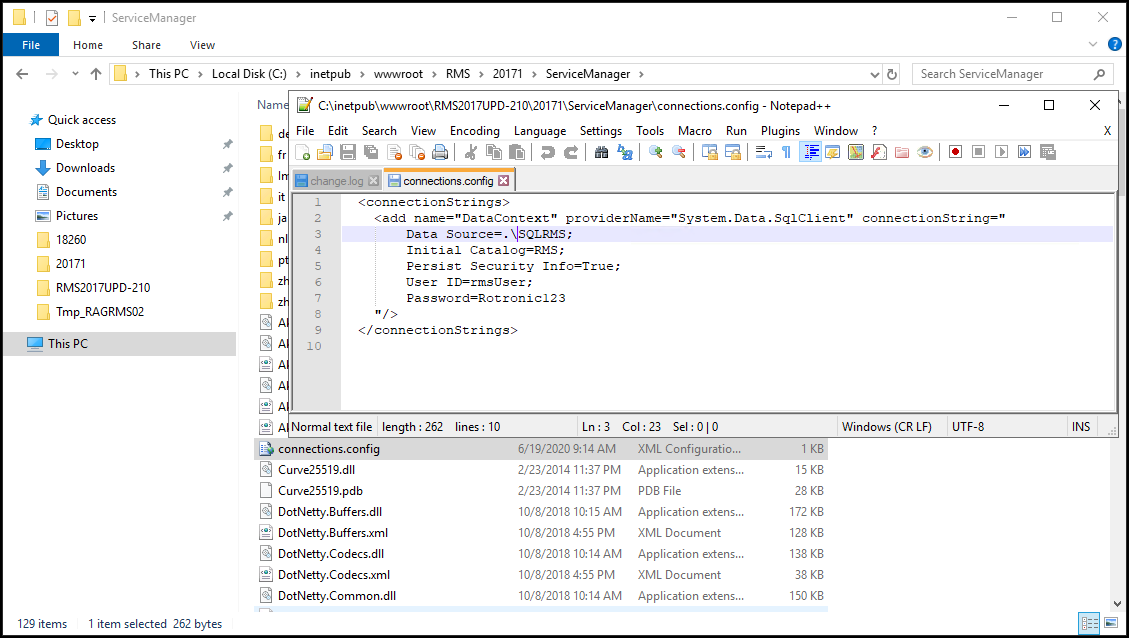

Edit, if required, the connection string (via Notepad) if the in "Connections.config" in folder C:\inetpub\wwwroot\RMS\20171\ServiceManager:
UpdateRmsFrom131To210_08

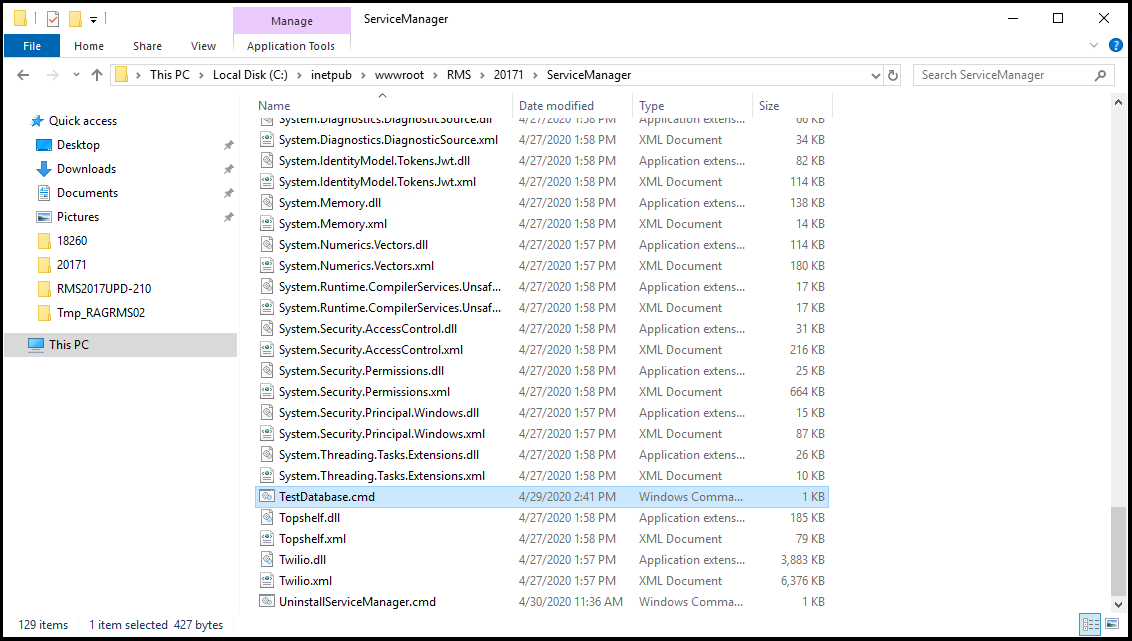

Step 8 Test the connection to the database, by double clicking on the "TestDatabase.cmd" command:
UpdateRmsFrom131To210_09
If the following screen appears, return to step 5 and execute the "Rotronic-RMS-Tables":
clip0116
The following screen should be shown if the test is successful, you can forward to step 10:
UpdateRmsFrom131To210_10
Step 9 \ Important Note

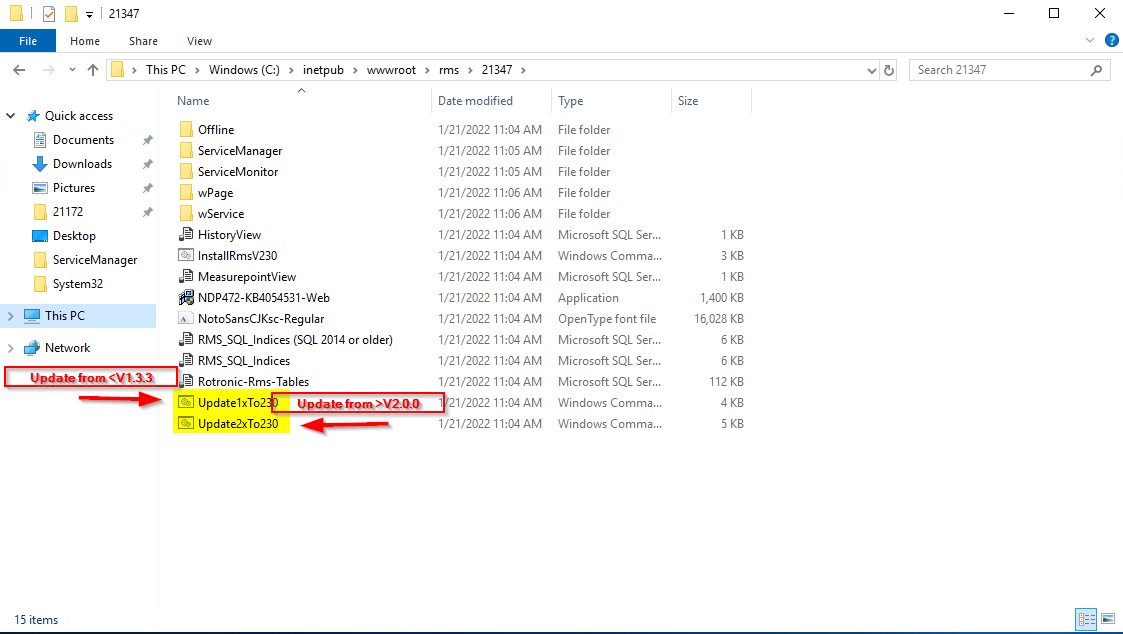

If you update from If you update from >V2.0.0 or higher, use the Update2xTo230.cmd \		 \ --- \
clip0115
Important Note
If you update from If you update from >V2.0.0 or higher, use the Update2xTo230.cmd
Step

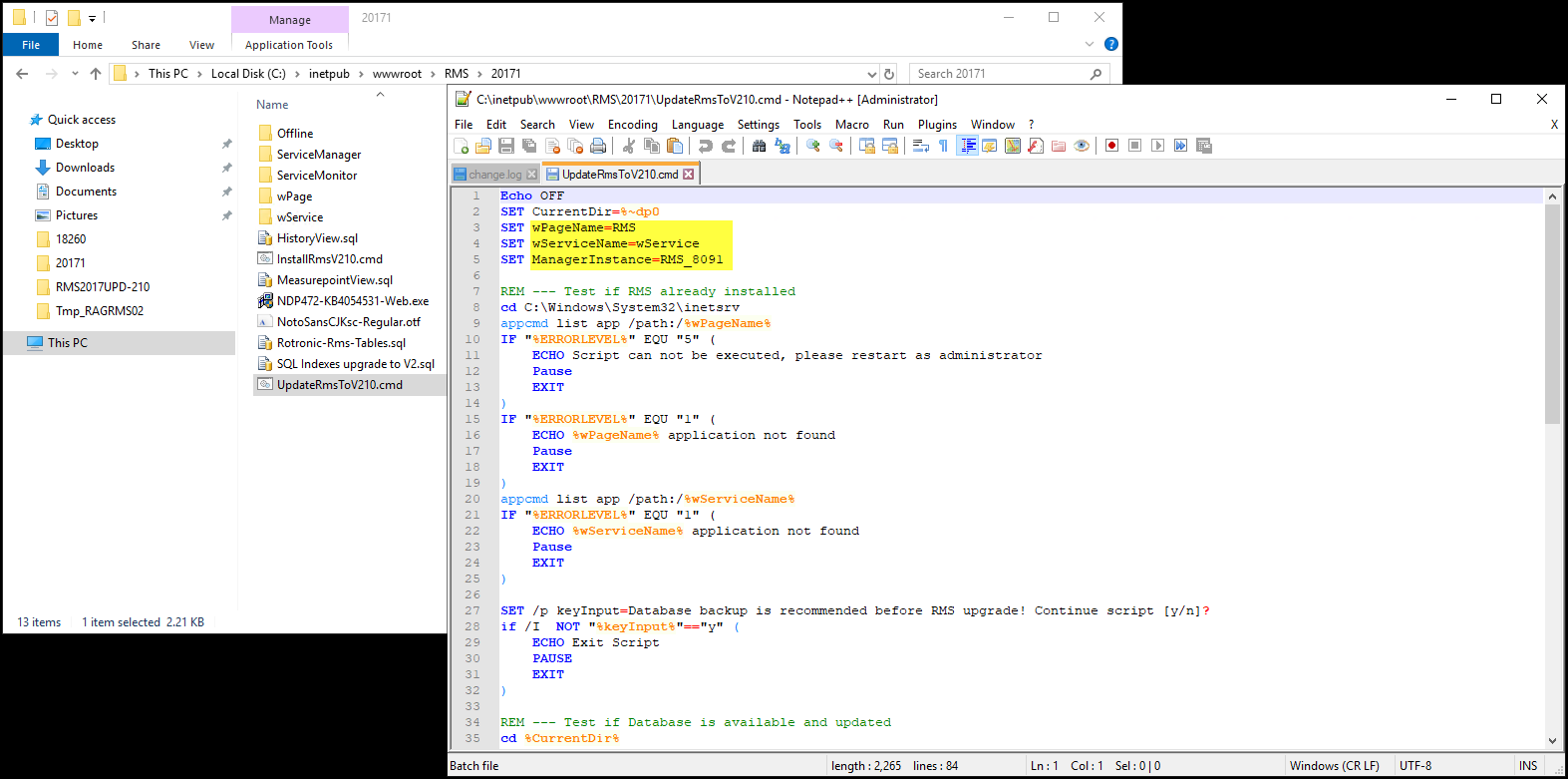

10		 Open the "Update1ToV221.cmd" or "Update2toV221.cmd" file with notepad and check to ensure that the wPageName, wServiceName and ManagerInstance are all correct.
The correct details are listed below in yellow:
UpdateRmsFrom131To210_11

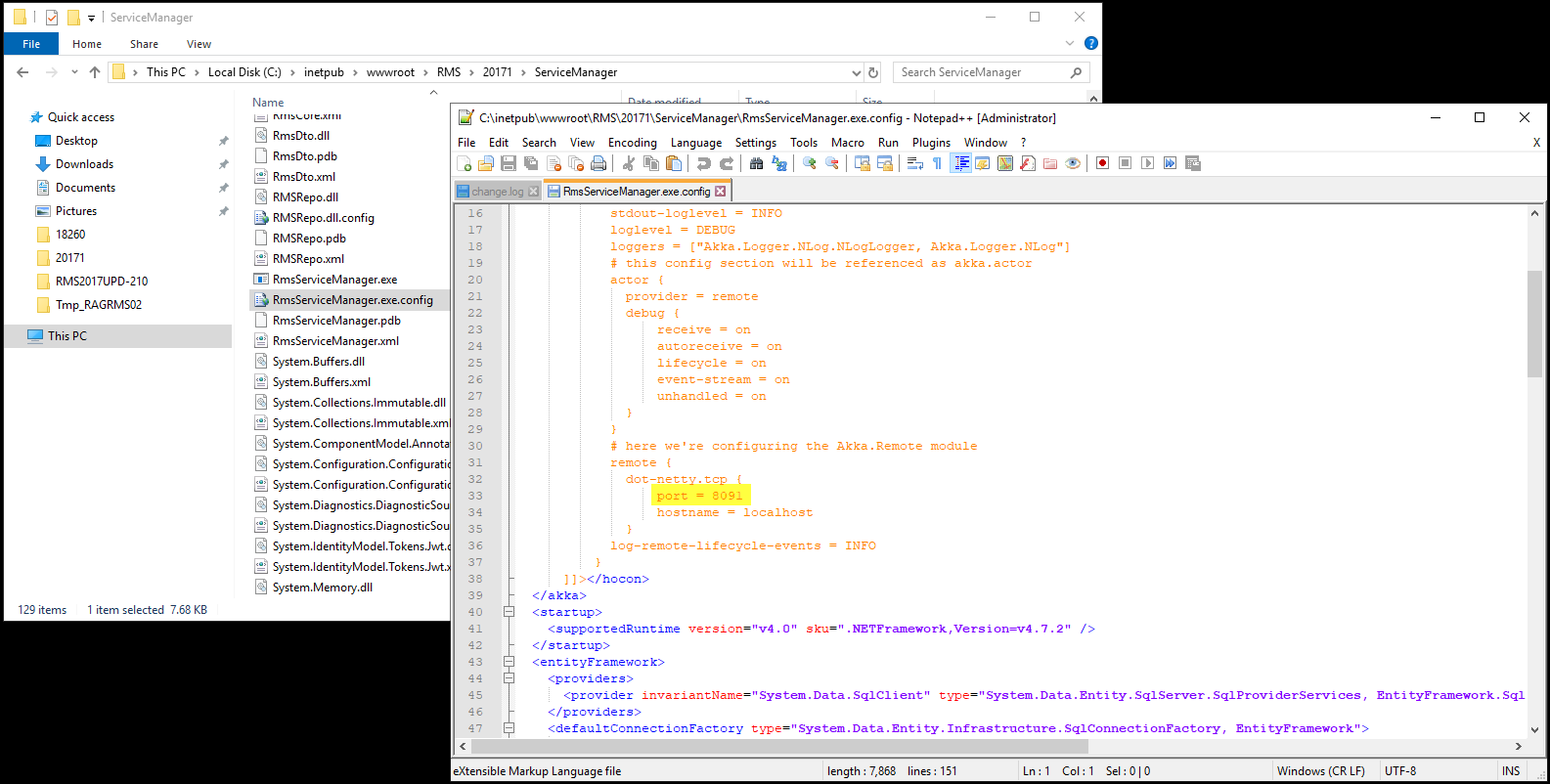

Step 11 Open the "RmsServiceManager.exe.config", in the ServiceManager file with notepad and check to ensure that the port = 8091:
UpdateRmsFrom131To210_12

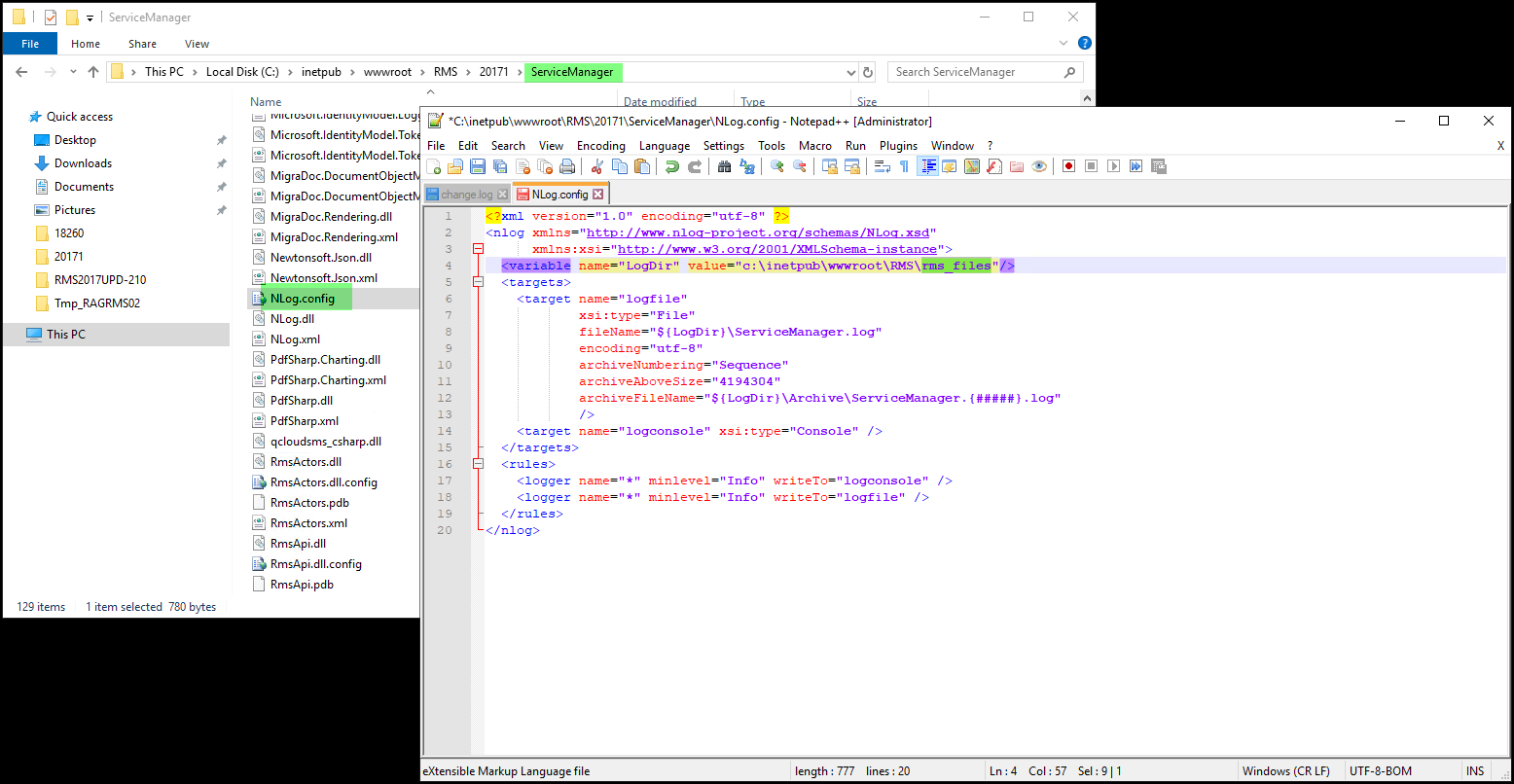

Open the "NLog.config", in the ServiceManager file with notepad and check to ensure that the path is set to rms_files:
UpdateRmsFrom131To210_15

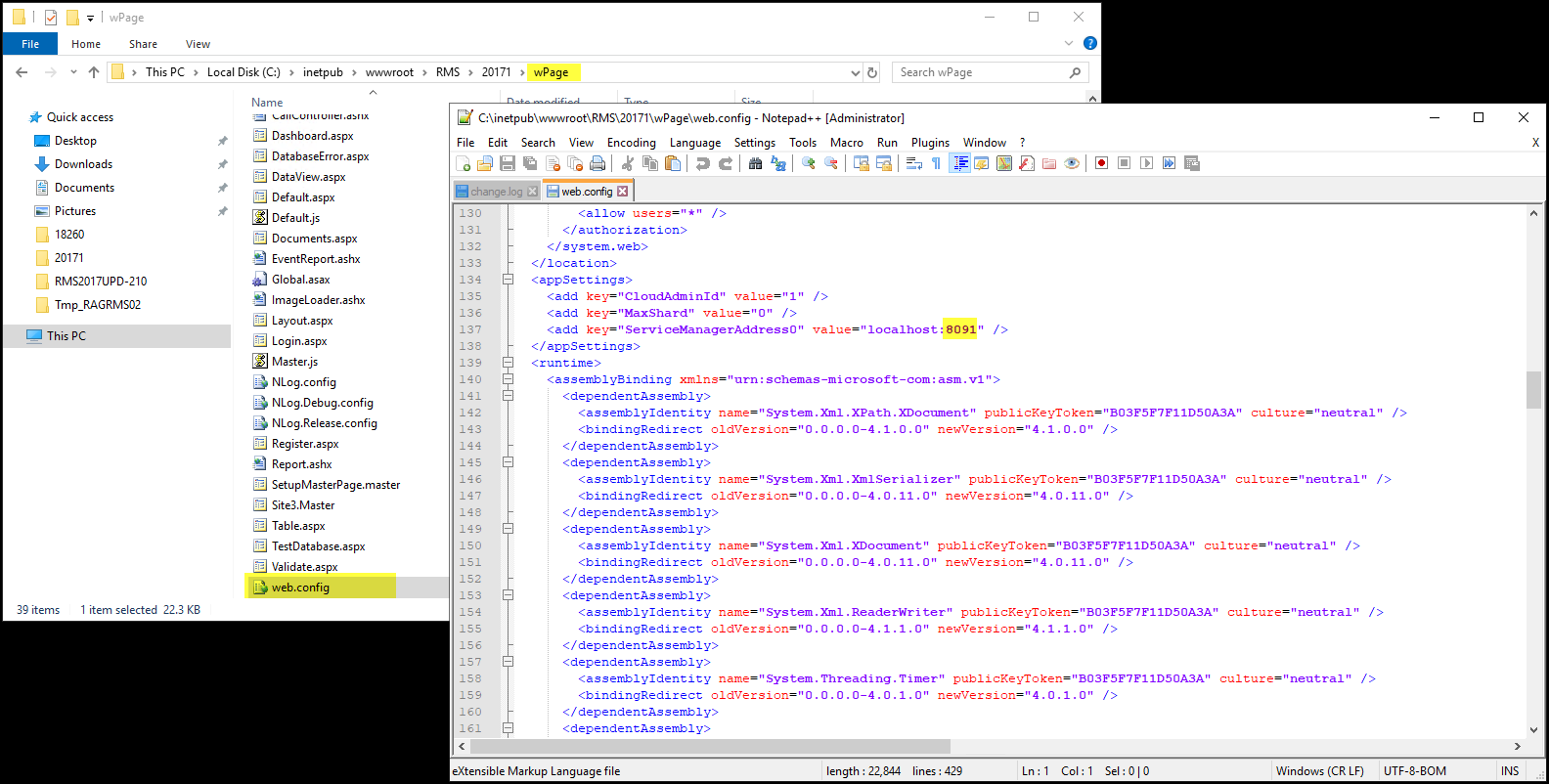

Open the "web.config", in the wPage file with notepad and check to ensure that the localhost:8091:
UpdateRmsFrom131To210_13

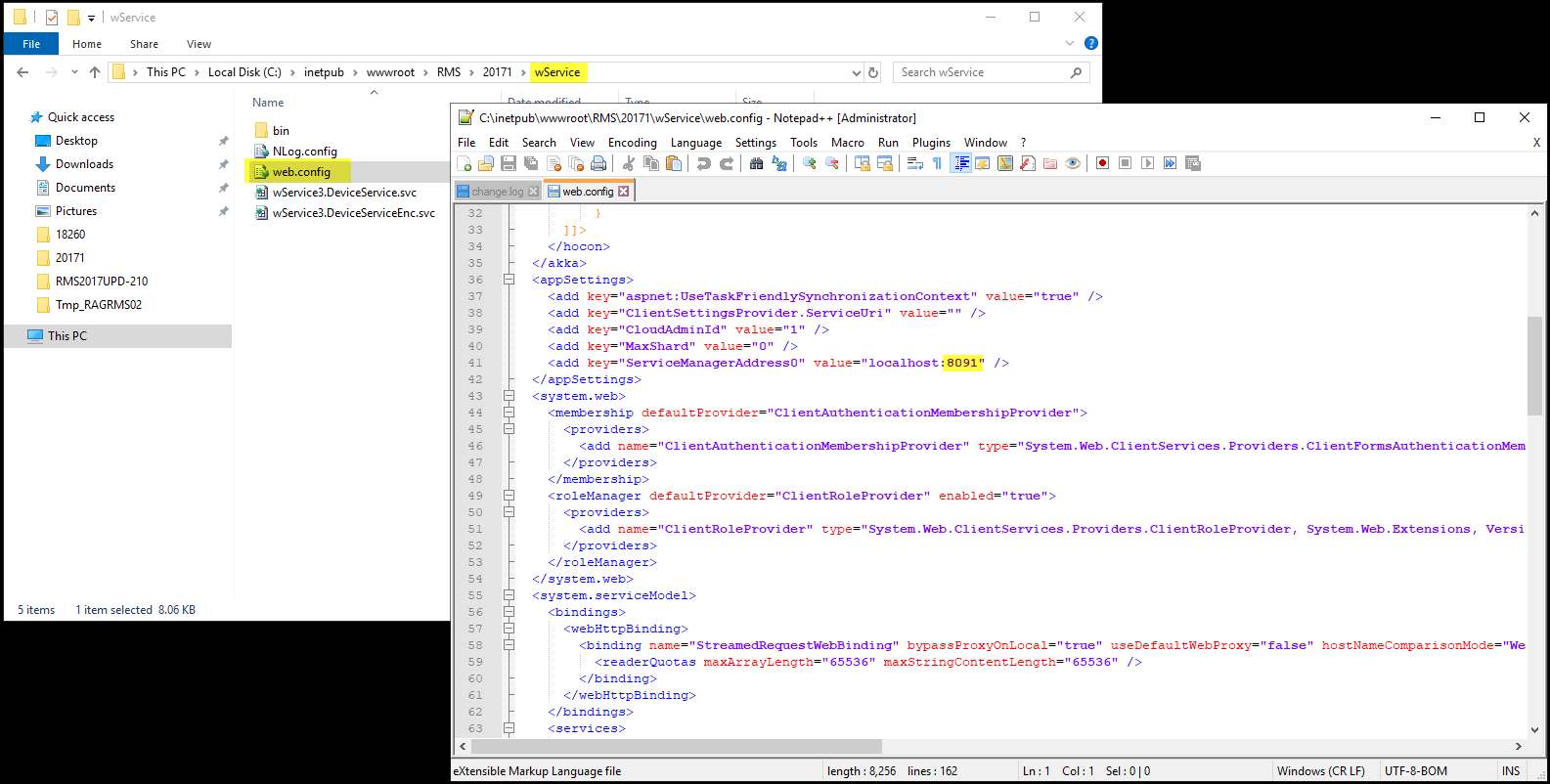

Open the "web.config", in the wService file with notepad and check to ensure that the localhost:8091:
UpdateRmsFrom131To210_14

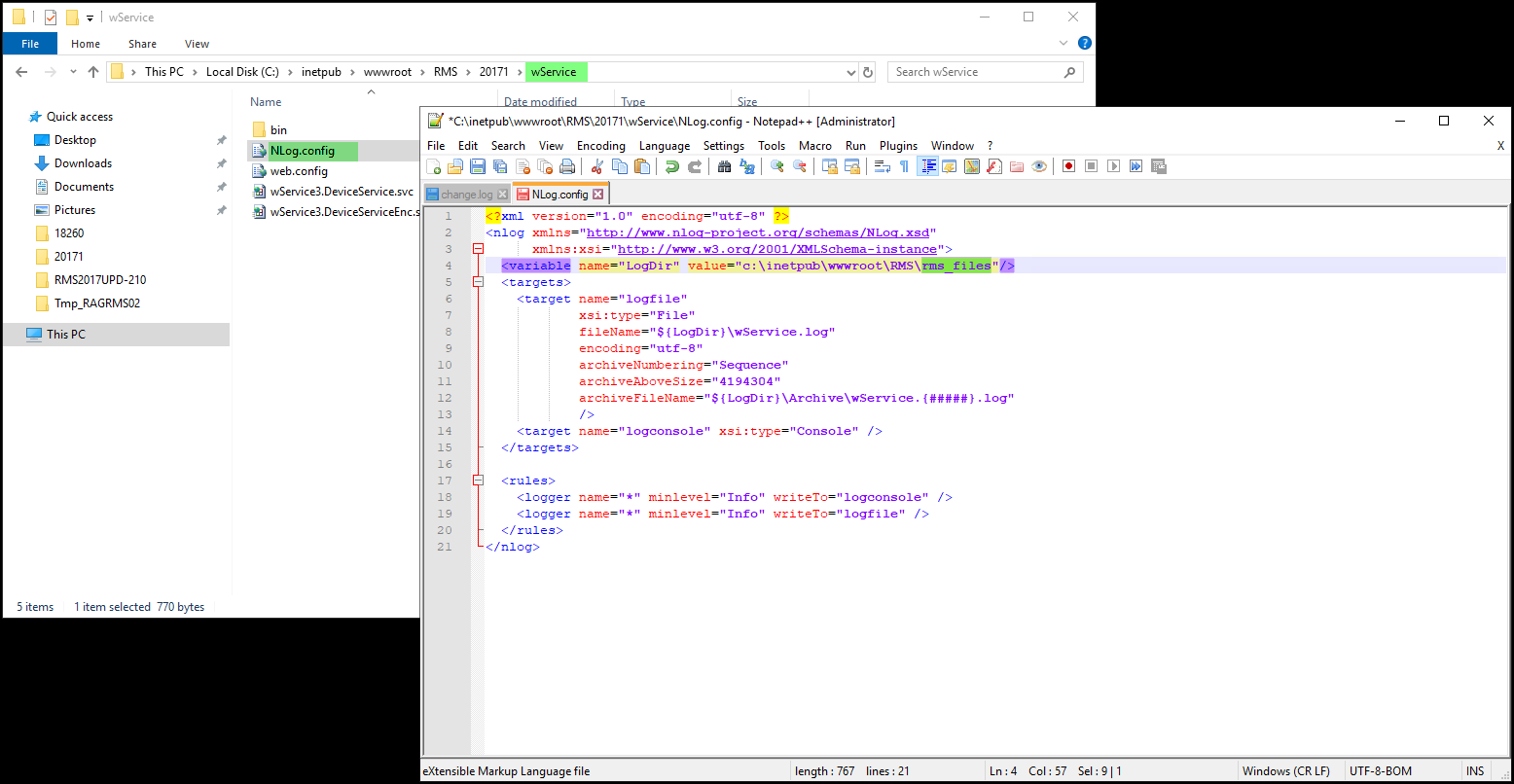

Open the "NLog.config", in the wService file with notepad and check to ensure that the path is set to rms_files:
UpdateRmsFrom131To210_17

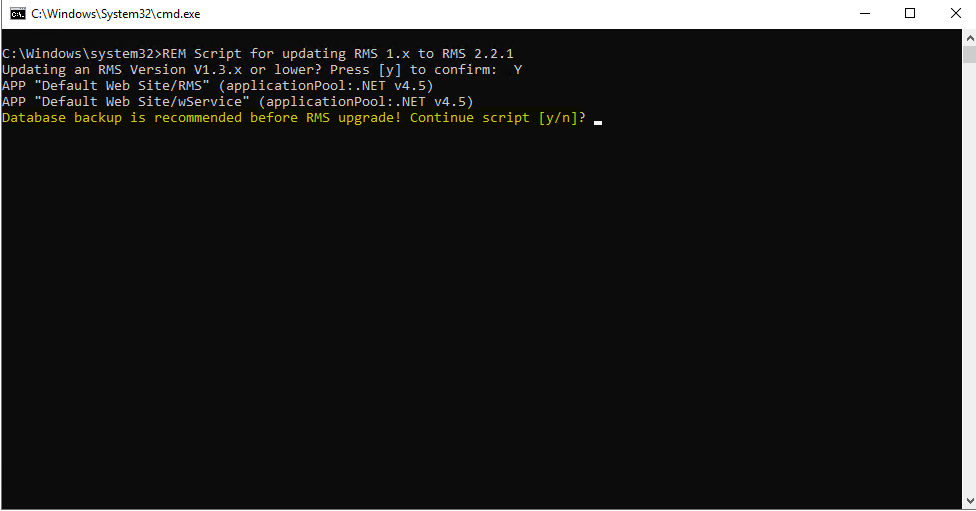

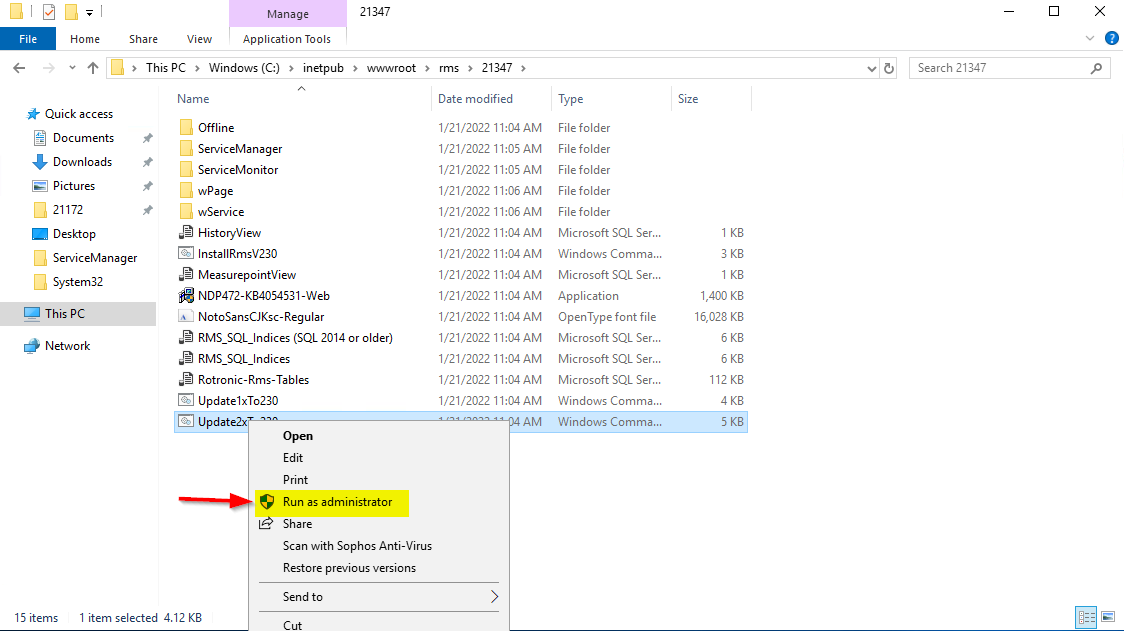

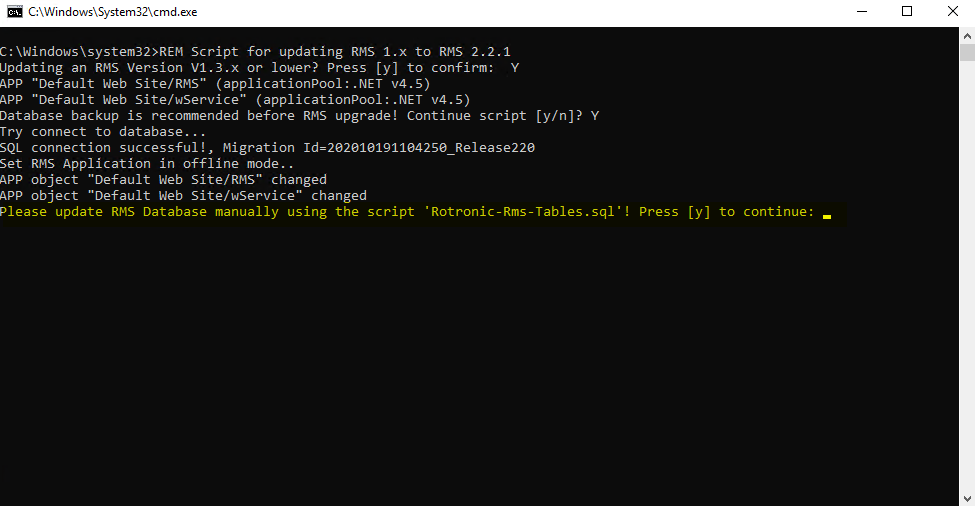

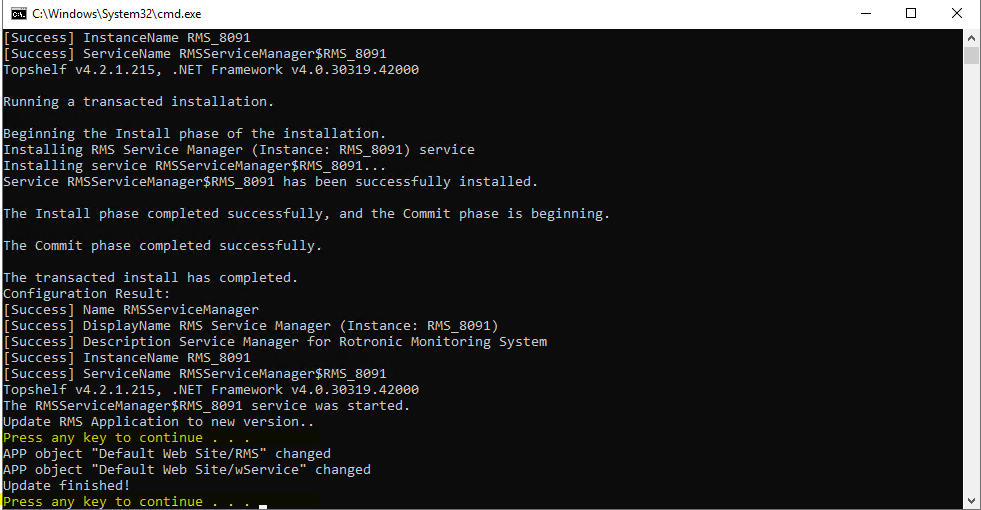

Step 12 Right click on the "Update1ToVxx.cmd" or "Update2toVxx.cmd" and run as administrator to run the update command and follow the steps in the script:
clip0100
Y
Y
clip0121
clip0122
clip0123

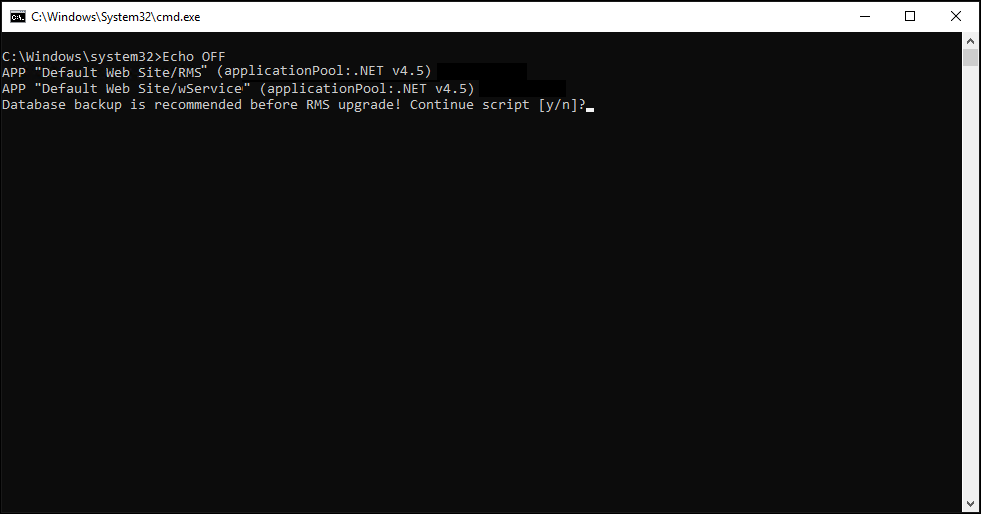

When prompted, enter "Y":
UpdateRmsFrom131To210_18

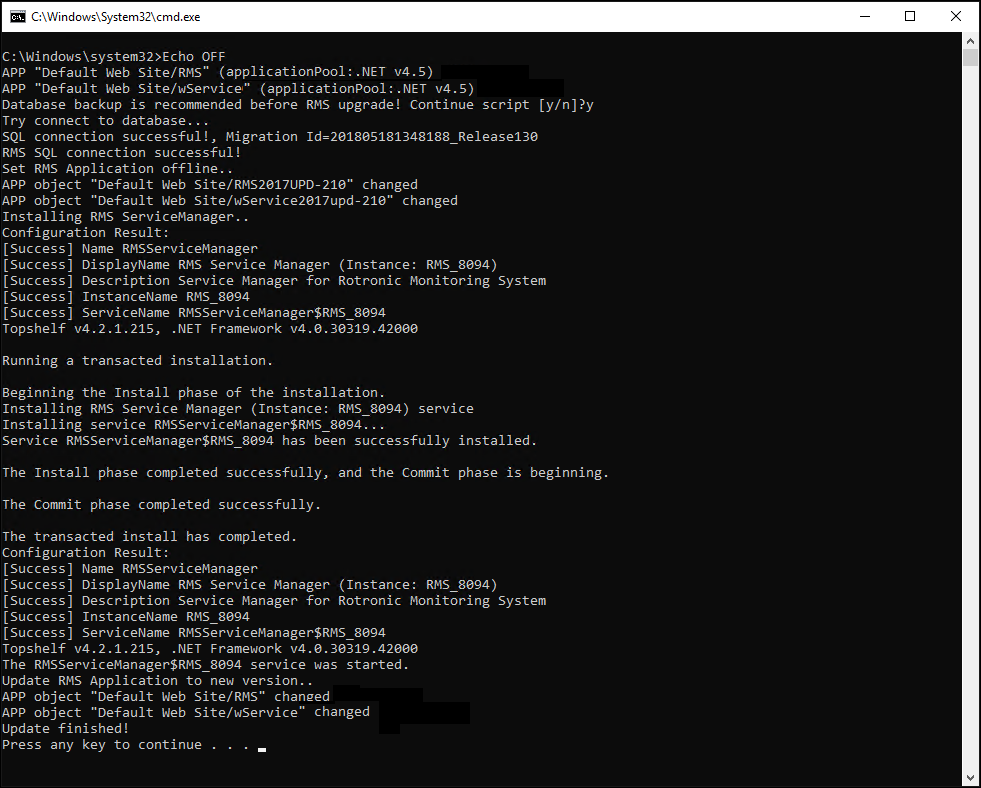

The following script will run:
UpdateRmsFrom131To210_19
Step 13 Recycle Application Pool ".NET V4.5" (in "IIS Manager" > "Application Pools" > "Recycle").
Step 14 Test to see if the website and the webservice are running:
Login to the website
Service test: ({ServerAddresse}/wService/wService3.DeviceService.svc/TestDatabase)
Install software 4
Step 15 Only if you want to add some other report Fonts, there is the instruction.
RMS V2.1 Add the Help Menu and Report Fonts.

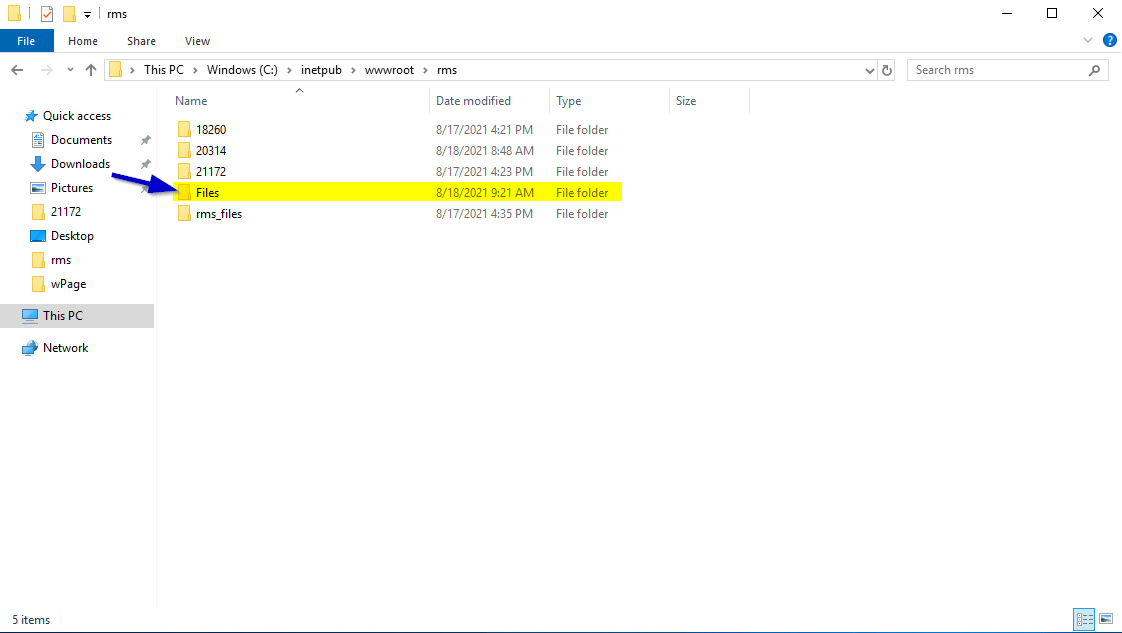

Step 16 Update the Documentation path in the RMS software accordingly. The update created a new folder. The software update has created a new folder. We recommend either leaving the old folder as it is or integrating everything into the new one. If background images, layouts, etc. are used in the software, they must be copied from the old folder to the new one.
clip0124
clip0126
Step 17 Once the software updated, ensure that a new license key is also added: Update your License Code.
