List of Integrated JSON Devices and Mapping

1 TheThingsNetwork D1 Device.
Mapping:
- BatV: Battery voltage.
- HumSHT: Internal relative humidity.
- TempCDS: External temperature.
- TempCSHT: Internal temperature.
2 OpenWeatherMap Device.
API Url example for Bern: https://api.openweathermap.org/data/2.5/weather?q=Bern
Mapping:
- Temp: Temperature.
- Pressure: Pressure
- Humidity: Relative humidity.
- Tempmin: Minimum temperature.
- Tempmax: Maximum temperature.
- Visibility: Visibility.
- Windspeed: Windspeed.
- Winddeg: Wind direction.
- Clouds: Clouds.
- Sunrise: Sunrise.
- Sunset: Sunset.
3 RMS Device.
API Url example for MPT-11: https://rms.rotronic.com/RMS/API/DataHistory.ashx?id=11
Mapping:
- Value: Measurement value.
4 Memmert AtmoWEB Device.
API URL example for a chamber with the IP 192.168.0.100: http://192.168.0.100/atmoweb
Mapping:
- TempSet: Temperature setpoint.
- Temp1Read: Temperature reading probe 1.
- Temp2Read: Temperature reading probe 2.
- Temp3Read: Temperature reading probe 3.
- Temp4Read: Temperature reading probe 4.
- HumSet: Relative humidity setpoint.
- HumRead: Realitive humidity reading.
- CO2Set: CO2 setpoint.
- CO2Read: CO2 reading.
- O2Set: O2 setpoint.
- O2Read: O2 reading.
- DoorOpen: Door status open/closed.
5 Lighthouse Apex Z3 Device.
API URL example for a device with the IP 192.168.5.39 communicating over the port 4000: ws://192.168.5.39:4000
Auto channel population/mapping:
Once the device is created with API provider “Lighthouse APEX Z3” then the following eight (8) channels are automatically populated for channel mapping and post paring. The RMS-JSON-API application will only send data to the RMS server if the channels have the status “true” in the “validChannels” list configured within the ApexZ device.
Channel ID:
- 0.3
- 0.5
- 1
- 3
- 5
- 10
- 15
- 20
Channel Name:
- 0.3um
- 0.5um
- 1um
- 3um
- 5um
- 10um
- 15um
- 20um
6 SensoScientific Software.
API URL: https://webapi.sensoscientific.com/api/CurrentStatus
The SensoScientific API will require a Token/Key that is valid for 1 year.
Method: POST
Parameter: grant_type=password&username=xxxxxx&password=xxxxxx
URL: https://webapi.sensoscientific.com/token

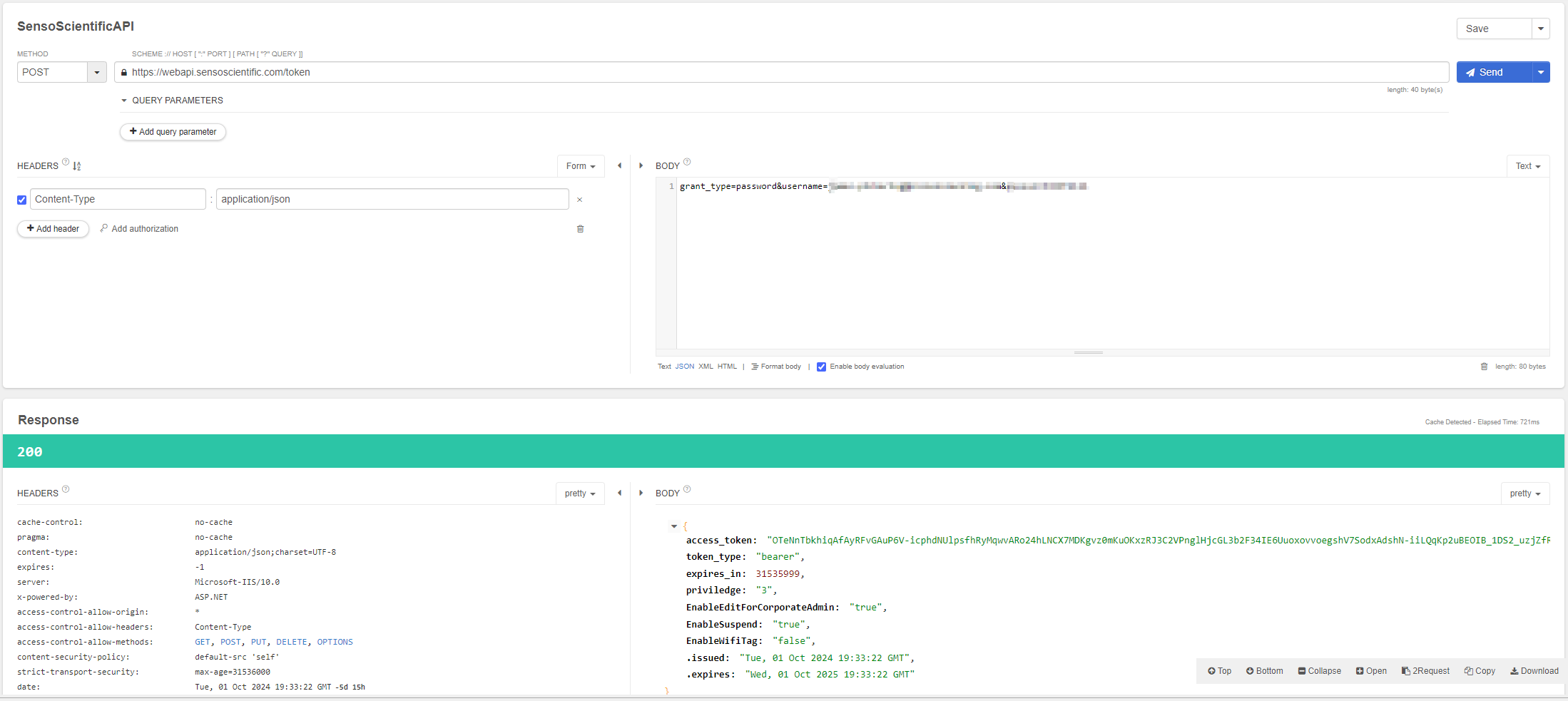

Example:
Senso token
The default interval should be >60s to avoid API request call limit issues.
For the device name: use the SensoScientific Node Name.
For the device serial number: use the SensoScientific Node ID.
For the account ID: use the SensoScientific Customer Number.

Updated: 07.10.2024
