Creation of Database Tables

Step 2 Open the extracted RMS software file. Open the file 0000-Rotronic-Rms-Tables.sql.
clip0207

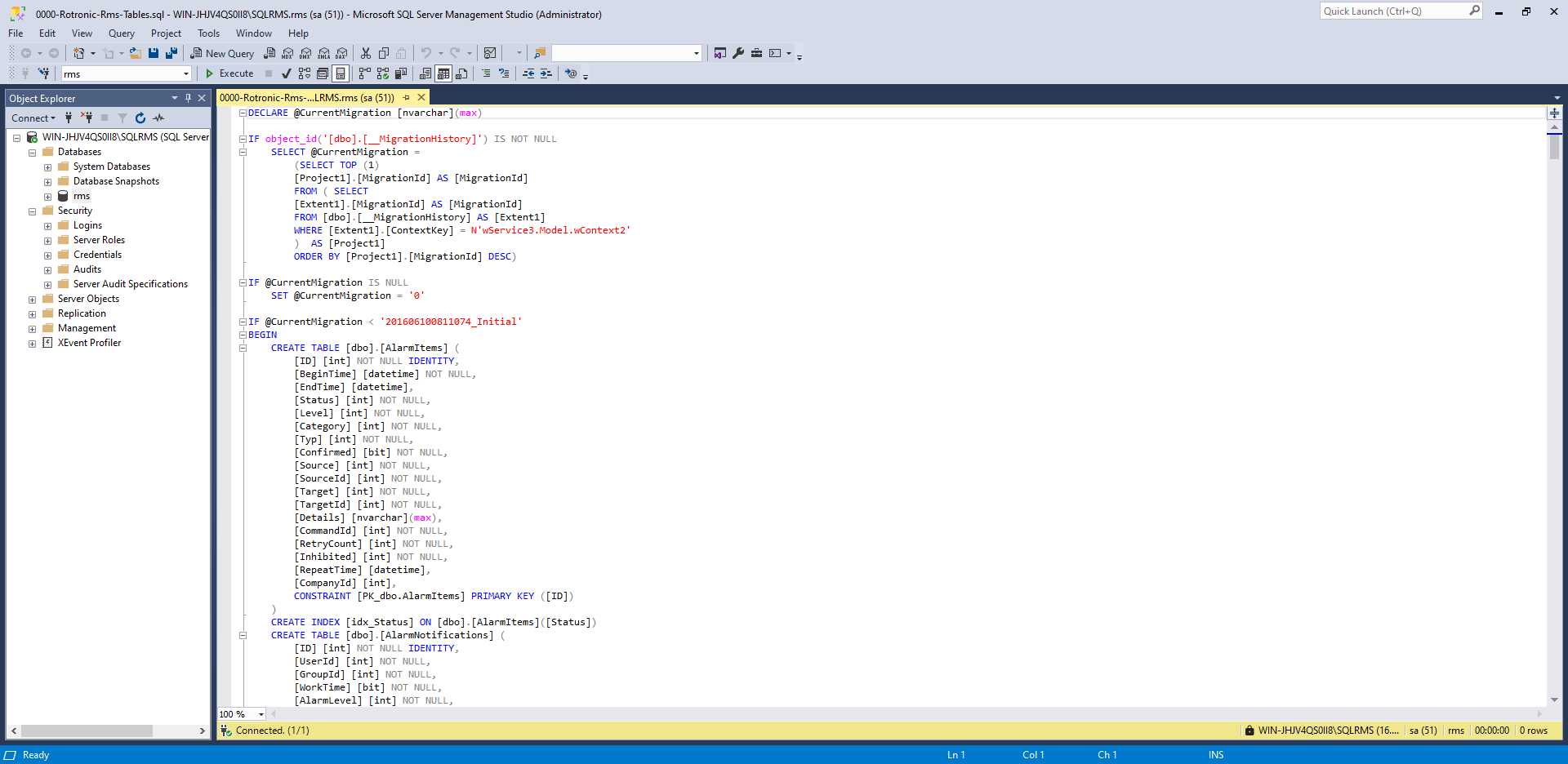

Step 3 The following window will open.
clip0208

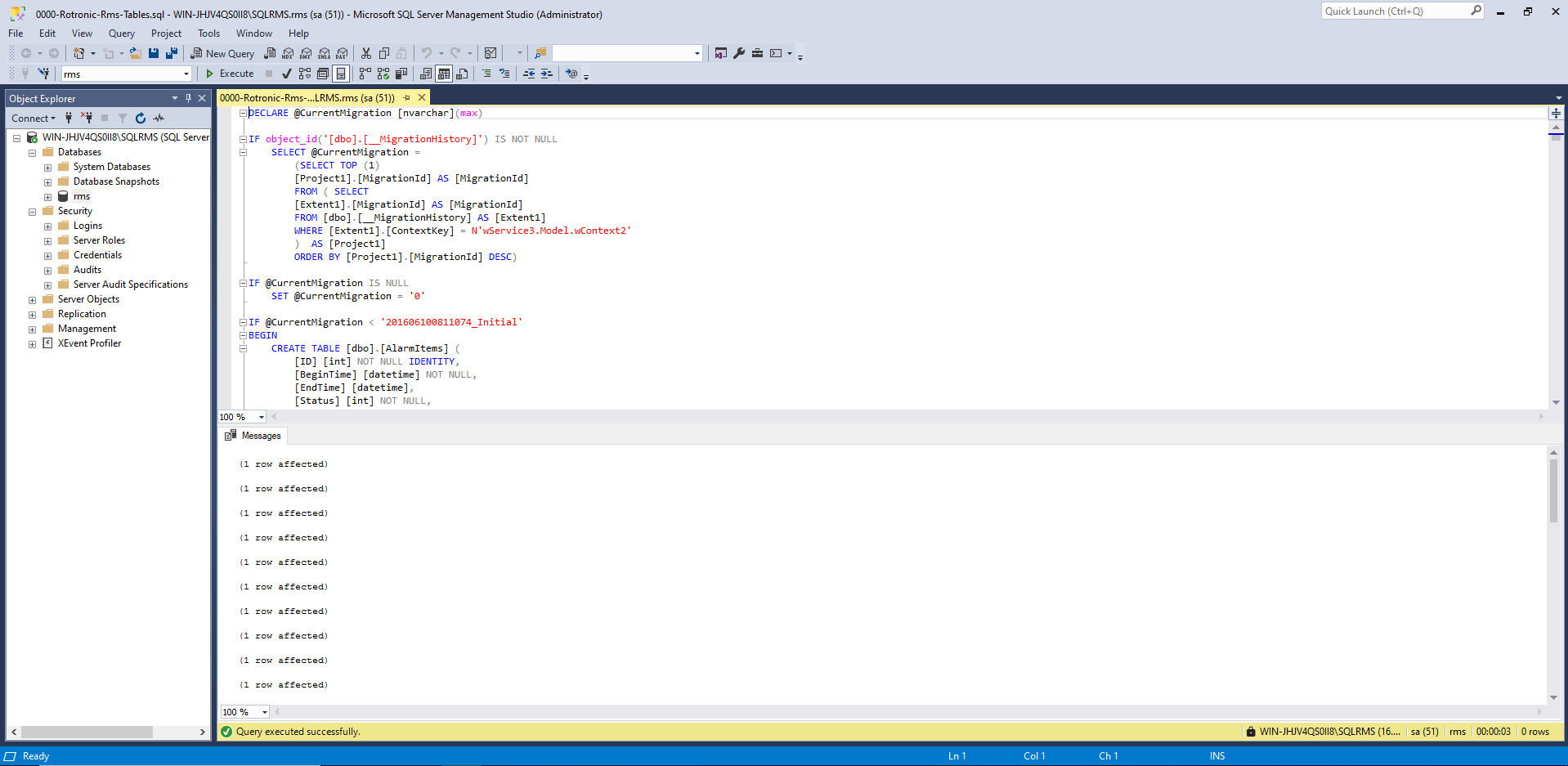

Step 4 Click on "Execute" to generate the tables. The RMS database tables are now created. Close the window.
clip0209
Step 5 Option 1: Installation of the RMS Software V2.8.0 Using Mixed Authentication Mode.
Option 2: Installation of the RMS Software V2.8.0 Using Windows Authentication Mode.
Option 3: Installation of the RMS Software V2.8.0 not on C: with Mixed Authentication Mode.
Option 4: Installation of the RMS Software V2.8.0 not on C: with Windows Authentication Mode.

Created: 29.07.2025
