Layout View

The measured values and labels are shown locally in a layout. Additional information on the measuring point is shown by a mouse-over function.

Under the layout it is possible to upload a .png or .jpg background picture (limited to 512 kB).

It is possible to add the following labels:

Detailed information on the creation of layouts is to be found in the E-SM-RMS-WEB.

E-OM-RMS-WEB-V1.3.1_layout view

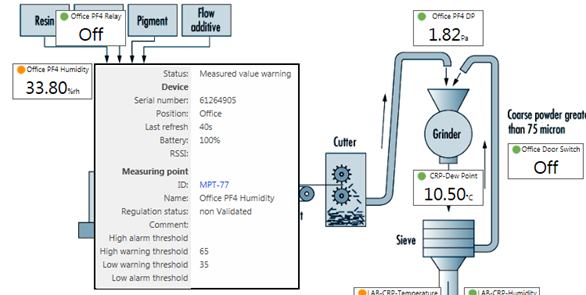

Figure 1: "Layout" view with mouse-over function at the right measuring point

Webcam

If webcams have been integrated in the layout, the current picture is shown by the mouse-over function.
