Installation and Configuration of the SQL Server Express

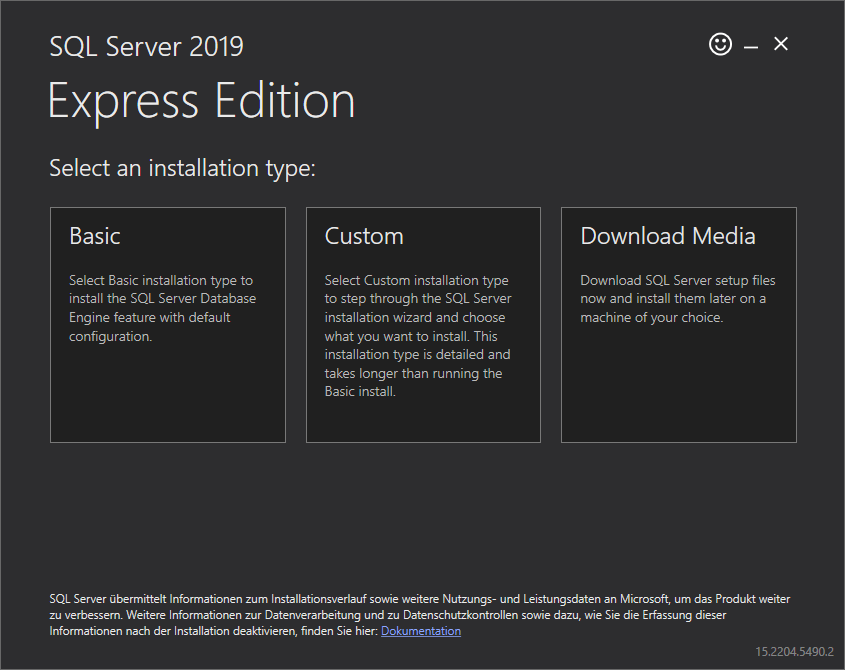

Step 2 The following window will appear:
SQL Installation 2

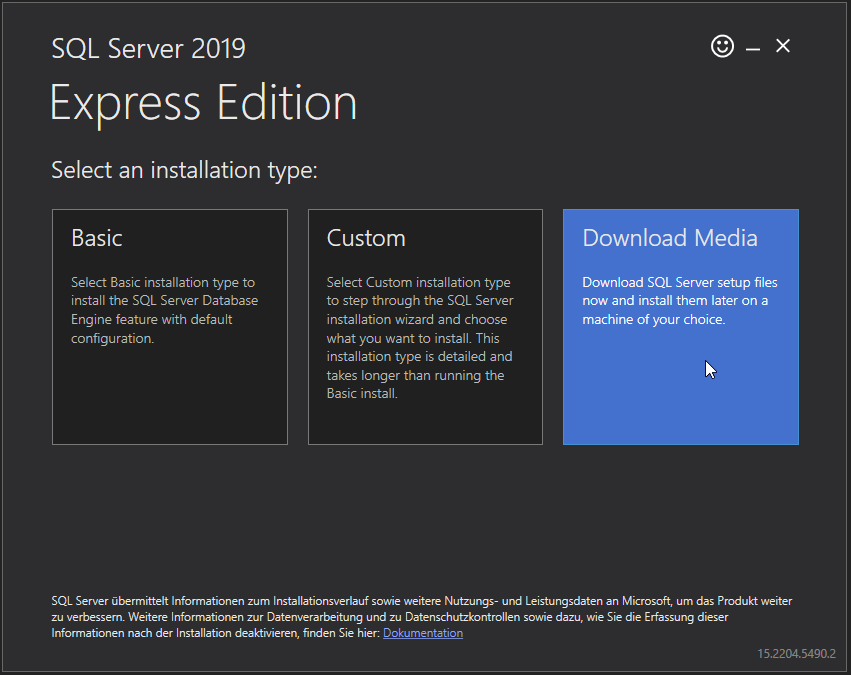

Select Download Media:
SQL Installation 3

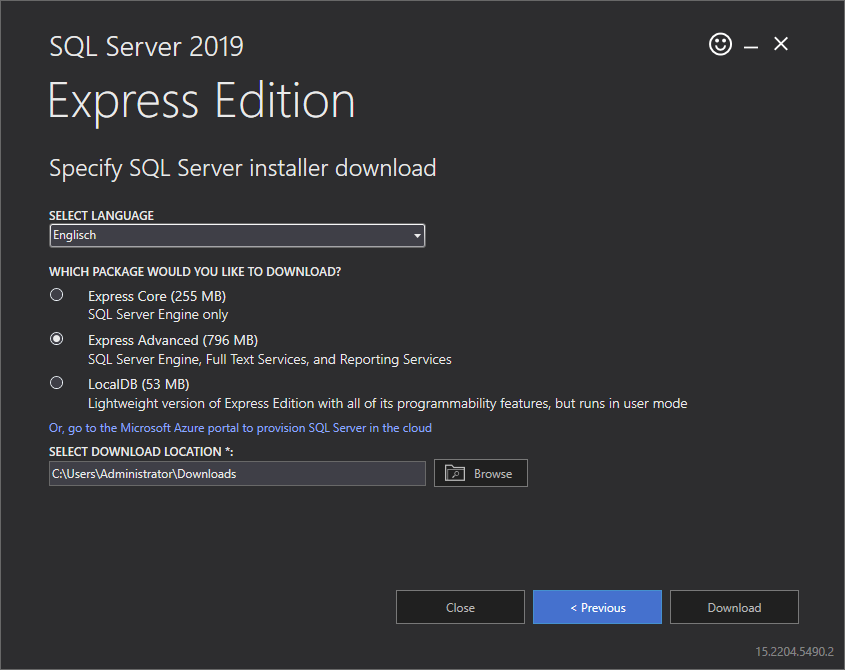

Select the following following language, package and download location and click on download:
SQL Installation 4

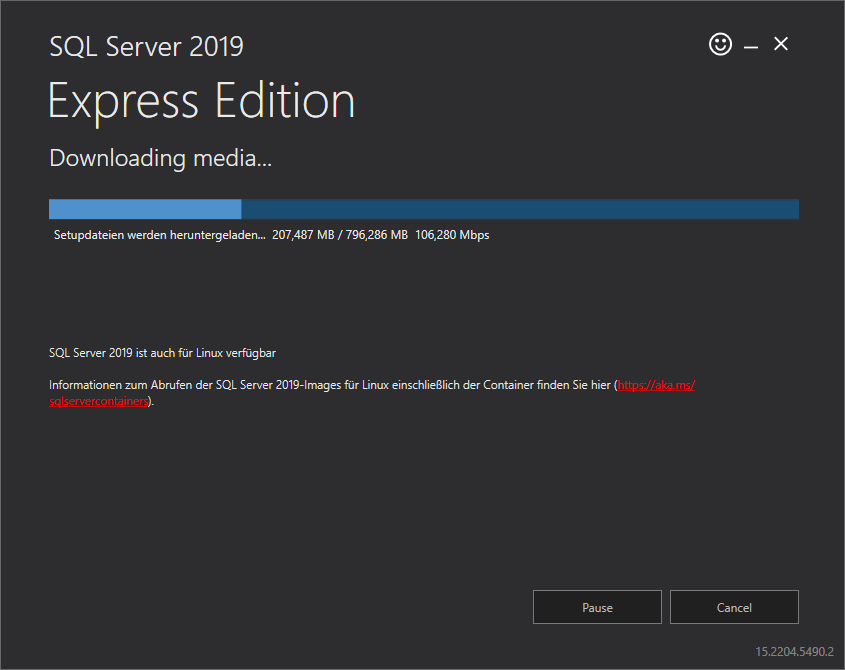

The download will commence:
SQL Installation 5
Once the download was successful, click on open folder:
SQL Installation 7

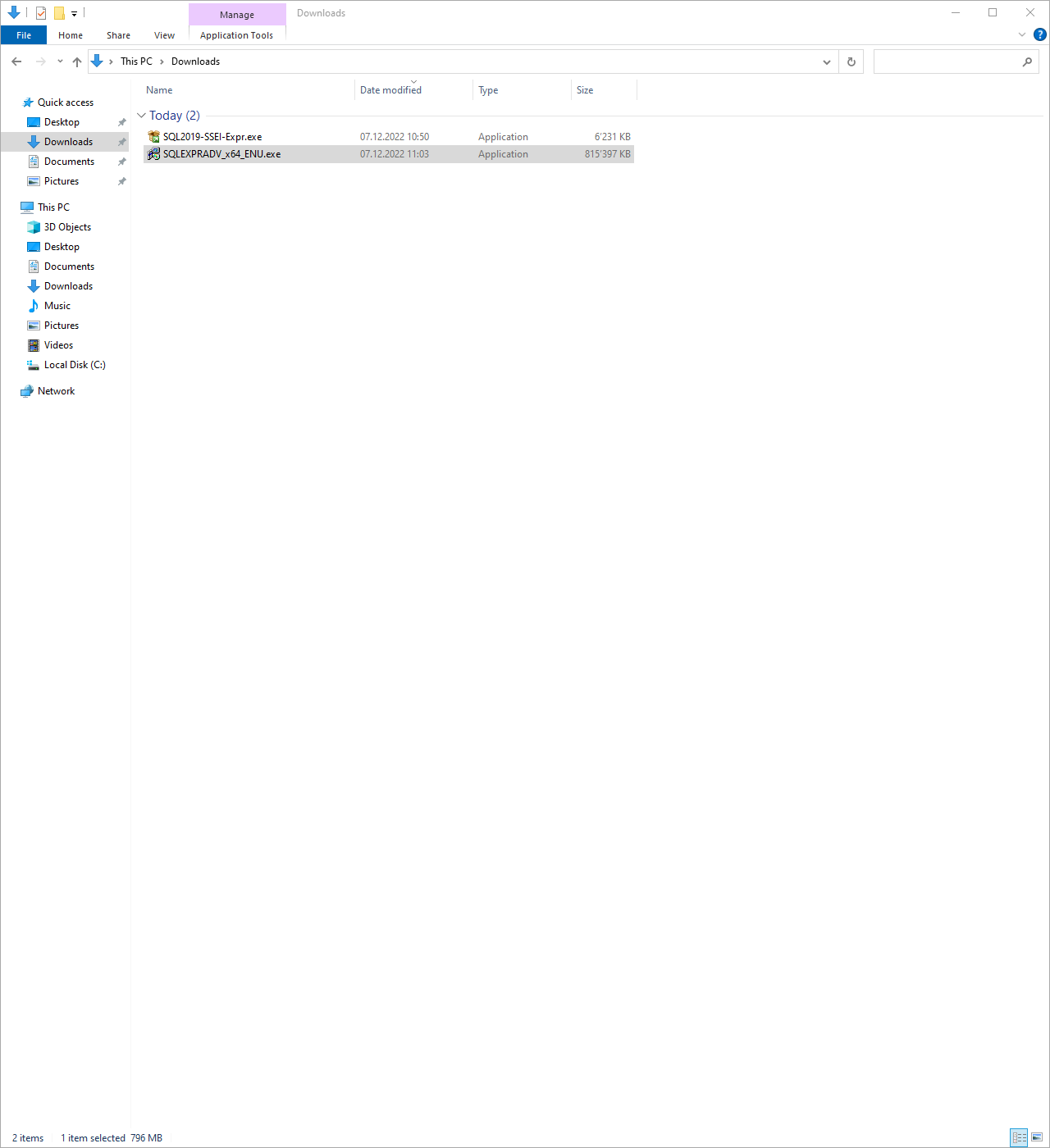

Step 3 Under the download folder, a new file is available: "SQLEXPRADV_x64_ENU.exe".
SQL Installation 8
Right click on the "SQLEXPRADV_x64_ENU.exe" file and run as administrator:
SQL Installation 9
Step 4 Choose the directory for the extracted file:
SQL Installation 10
Click on OK and the extraction will start:
SQL Installation 11

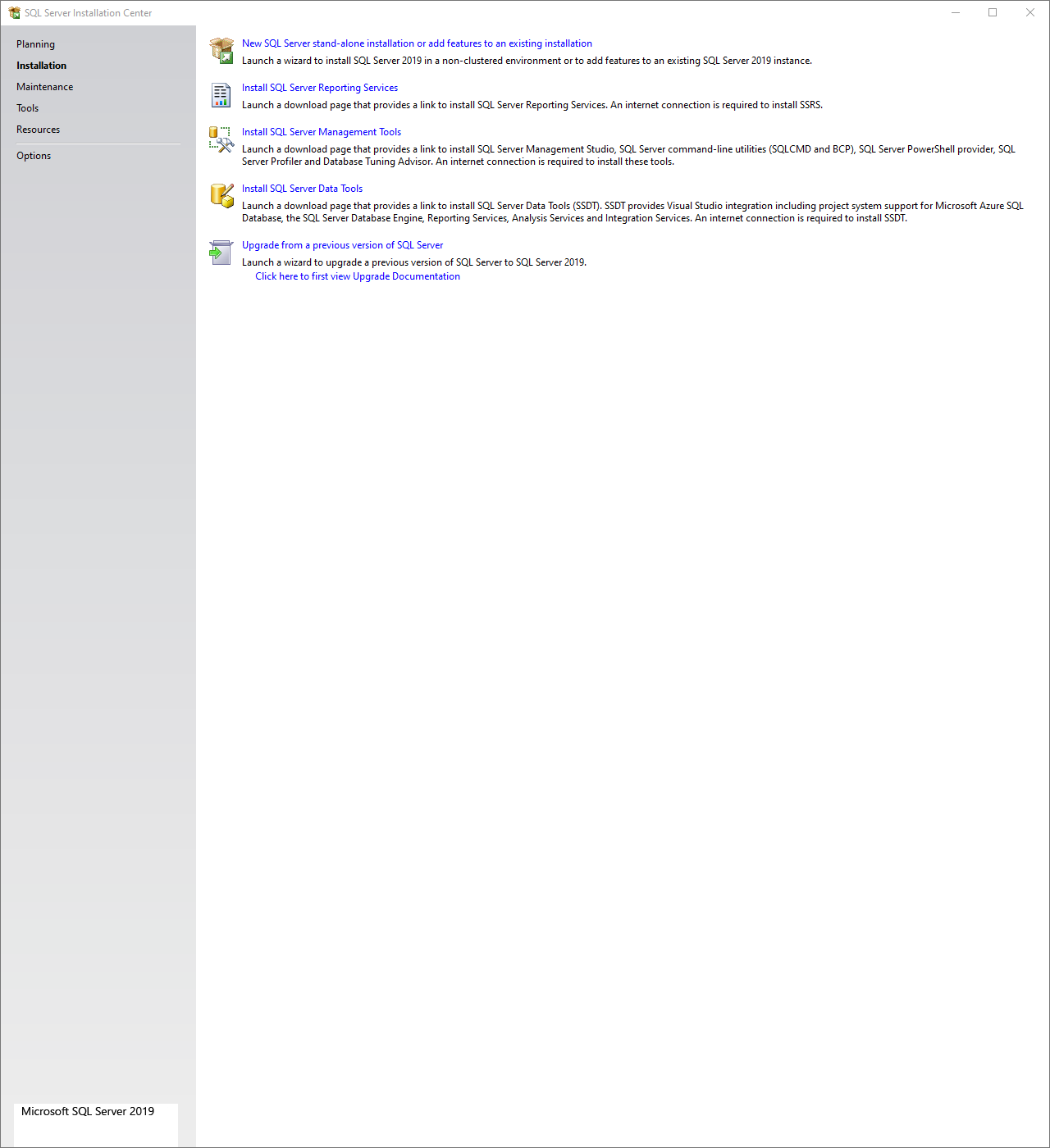

Step 5 The following window will open:
SQL Installation 12
Select "New SQL Server stand-alone installation or add features to an existing installation":
SQL Installation 13
Read the License Terms and tick "I accept the license terms". Then click on "Next".
SQL Installation 14

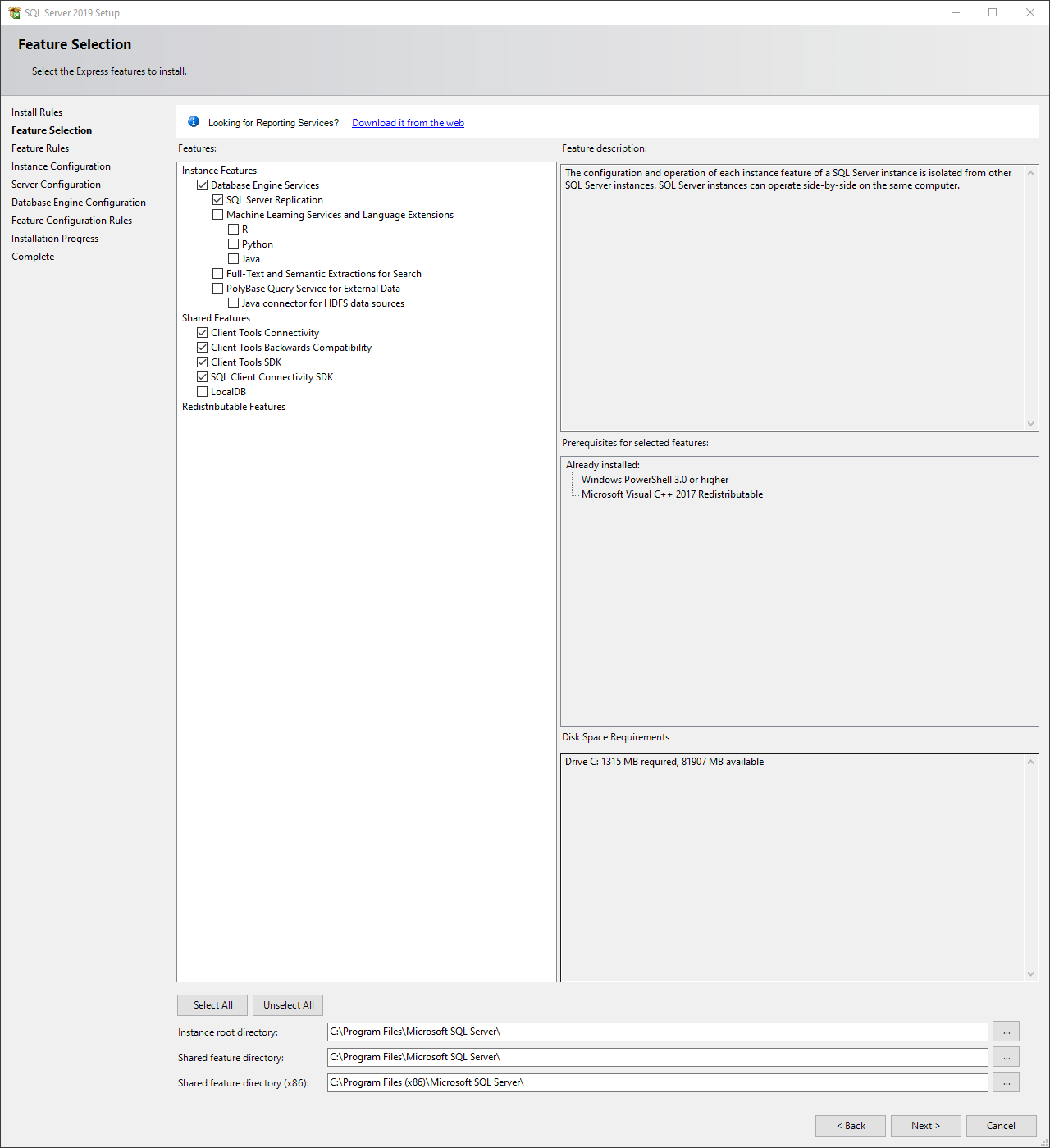

Step 6 Feature Selection: Select the features seen in the print screen (these are the standard features already offered by SQL when carrying out the setup). Then click on "Next".
SQL Installation 15
IMPORTANT: If the data of the SQL server should be added to another location, update the instance root directory now as this cannot be changed afterwards!
Step 7 Instance Configuration: Change the named instance to SQLRMS and go to "Instance ID" with the tab key. SQL Server Setup will fill in the ID automatically with the named instance name. Then click on "Next".
SQL Installation 16
Step 8 Server Configuration: Make sure that the SQL Server Browser is set to Automatic. Then click on "Next".
SQL Installation 17

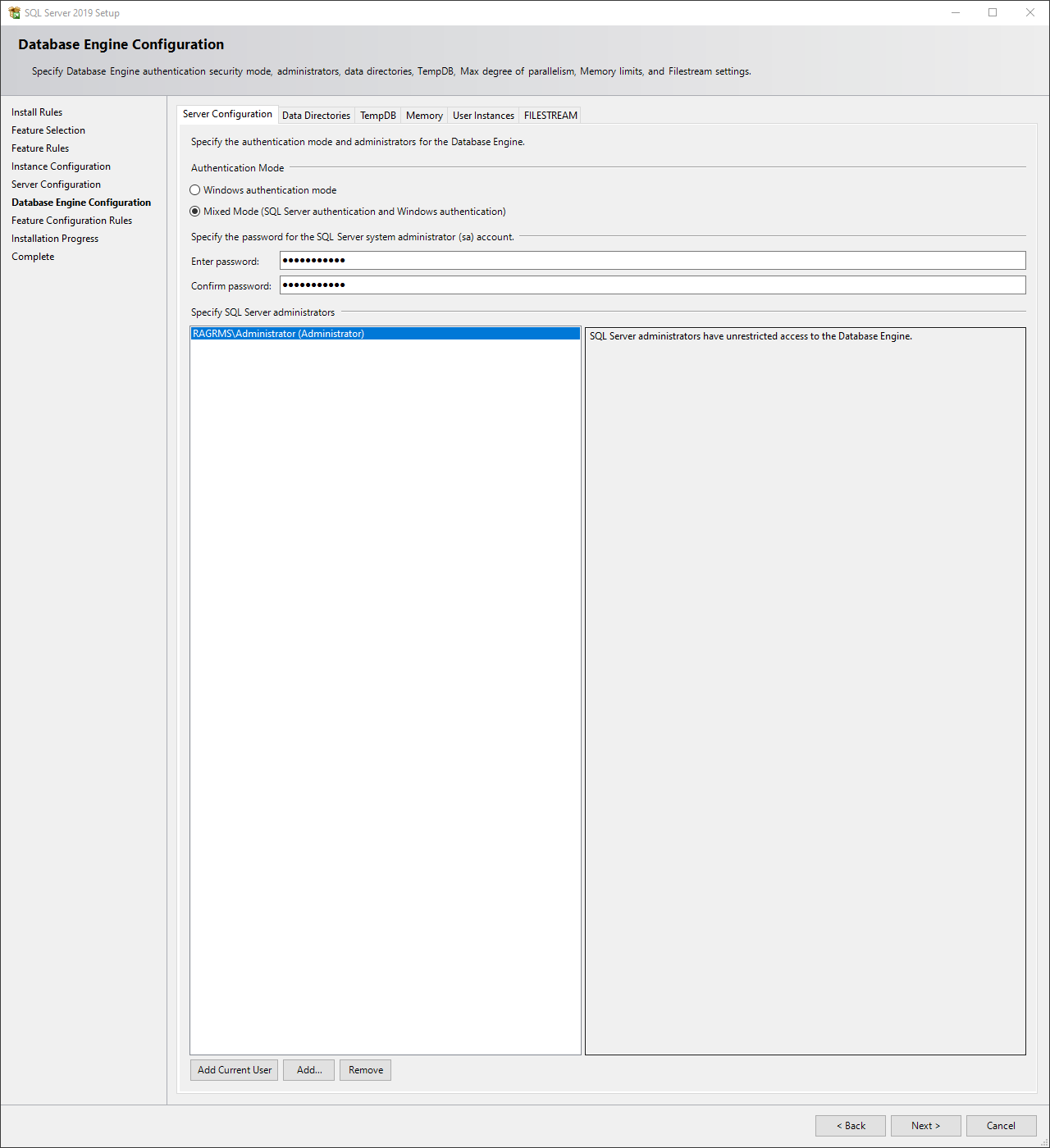

Step 9 Database Engine Configuration: Select the Mixed Authentication mode, then specify the password for the SQL Server system administrator (sa) account.
Recommendation Rotronic: Rotronic123.
Then click on "Next".
SQL Installation 18
If using Windows authentication mode multiple other settings must be made and are not documented within this manual. Please reach out to [email protected] for more details.
Step 10 The SQL Server 2019 Setup is now complete. Click on "Close".
SQL Installation 19
