HTTPS Gateway¶

The RMS-Converter has a HTTPS Gateway function of LAN devices that does not provide a HTTPS protected communication to the RMS server.

The Https checkbox is for https communication from the RMS-Converter to the RMS server.

To use the Gateway function, the Https checkbox and the DeviceService Gateway must be set. The blue link that appears at DeviceService Gateway should be used to configure the LAN devices via RMS-Config.

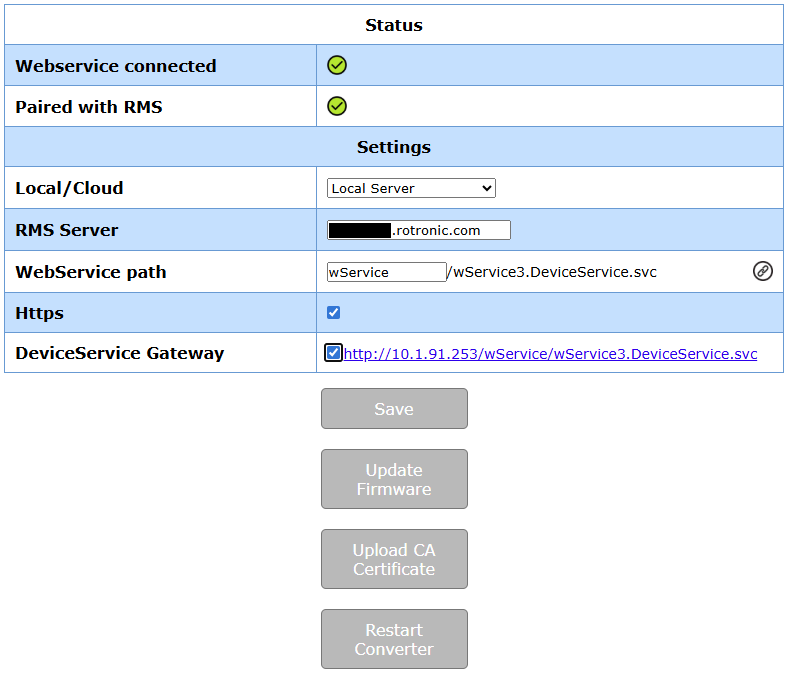

RMS-converter-HTTPS-GAteway

After a click on in the GUI above, the LAN device e. g. a RMS-LOG-L can be added to the RMS software on the common way (Tools -> Setup -> Devices -> New ...).

Created 14.07.2025
