Add a System Measuring Point

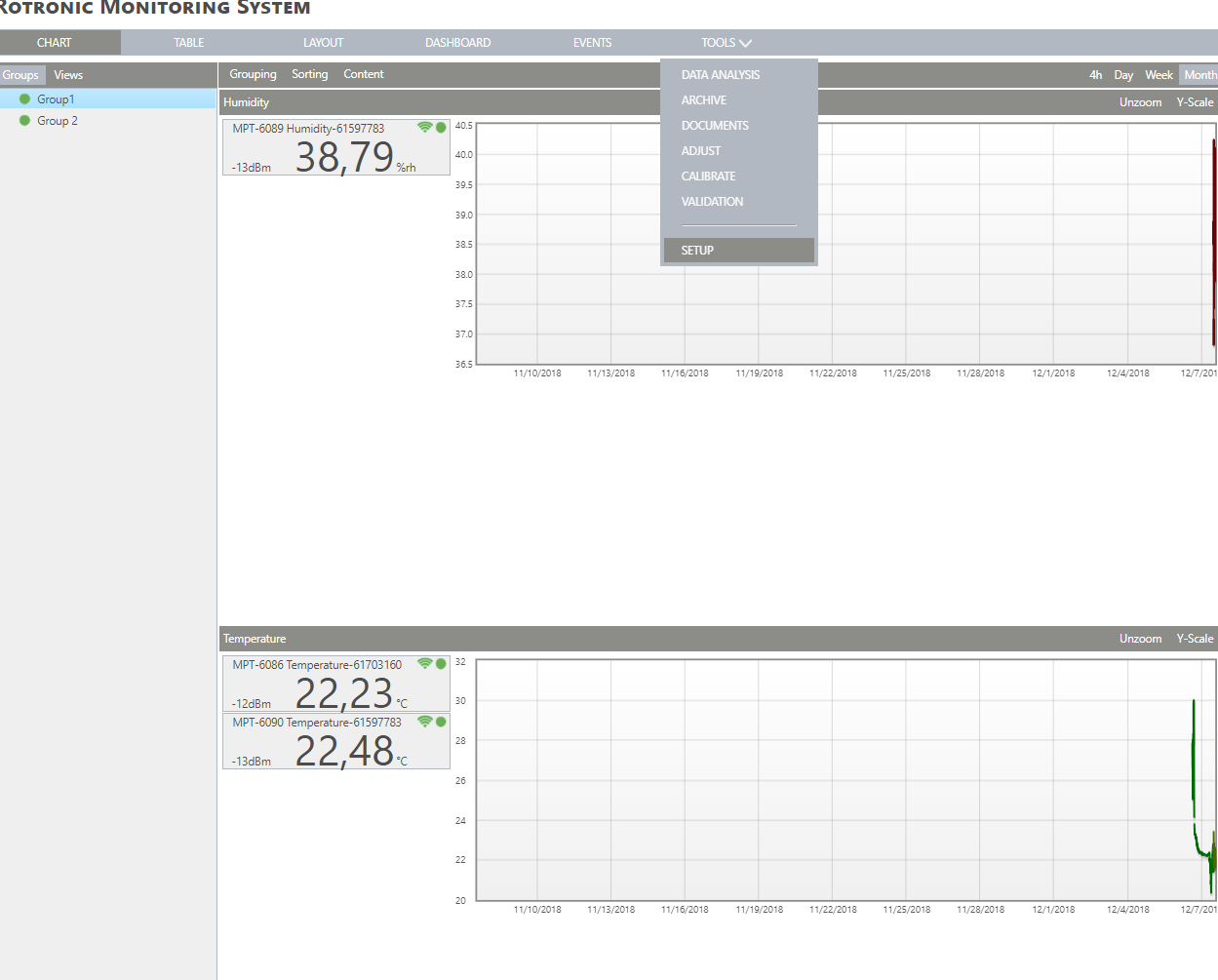

Step 1 From the start page, click on "Tools" > "Setup":
RMS add a system measuring point step 1

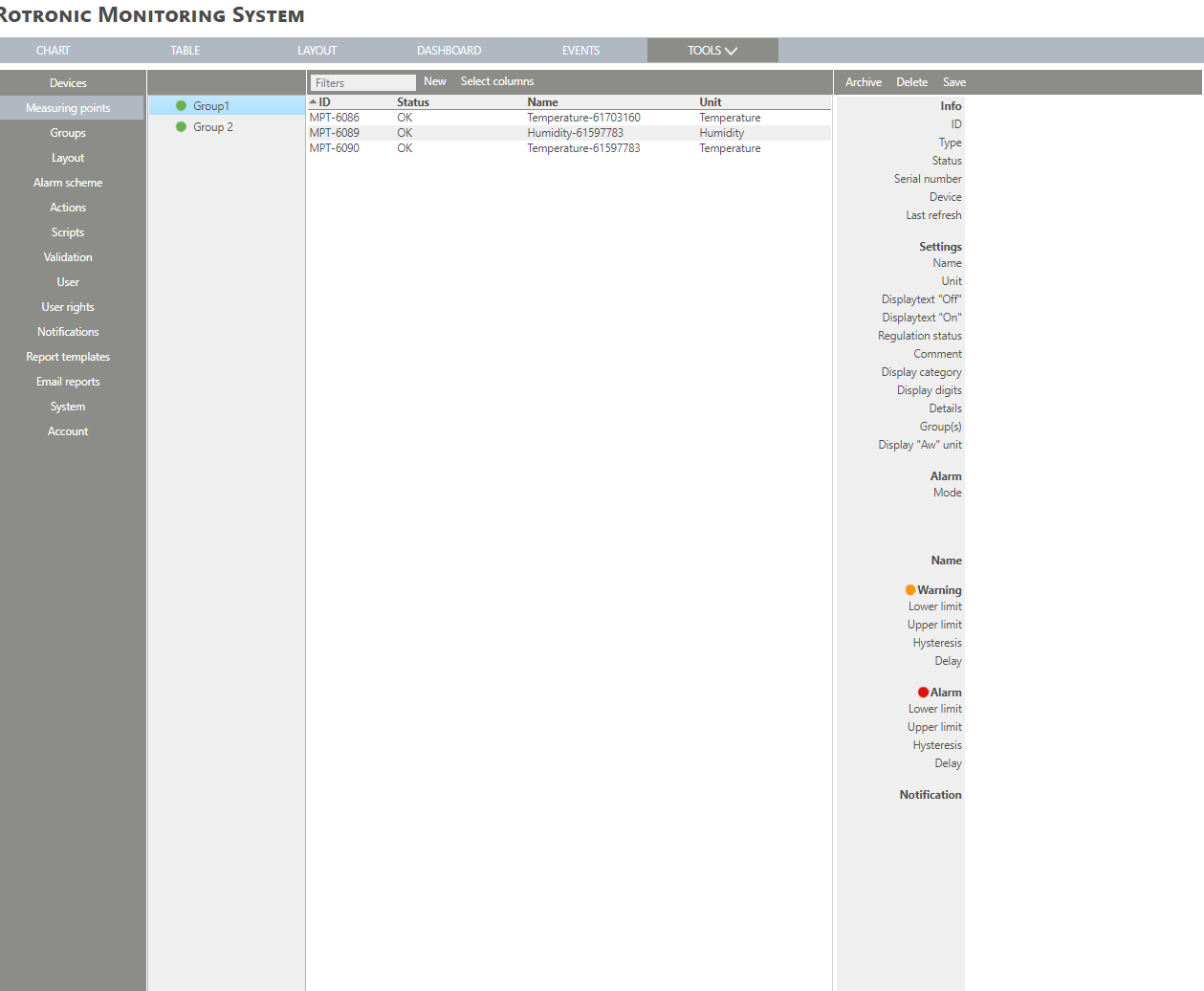

Step 2 On the left side, select "Measuring points":
RMS add a system measuring point step 2

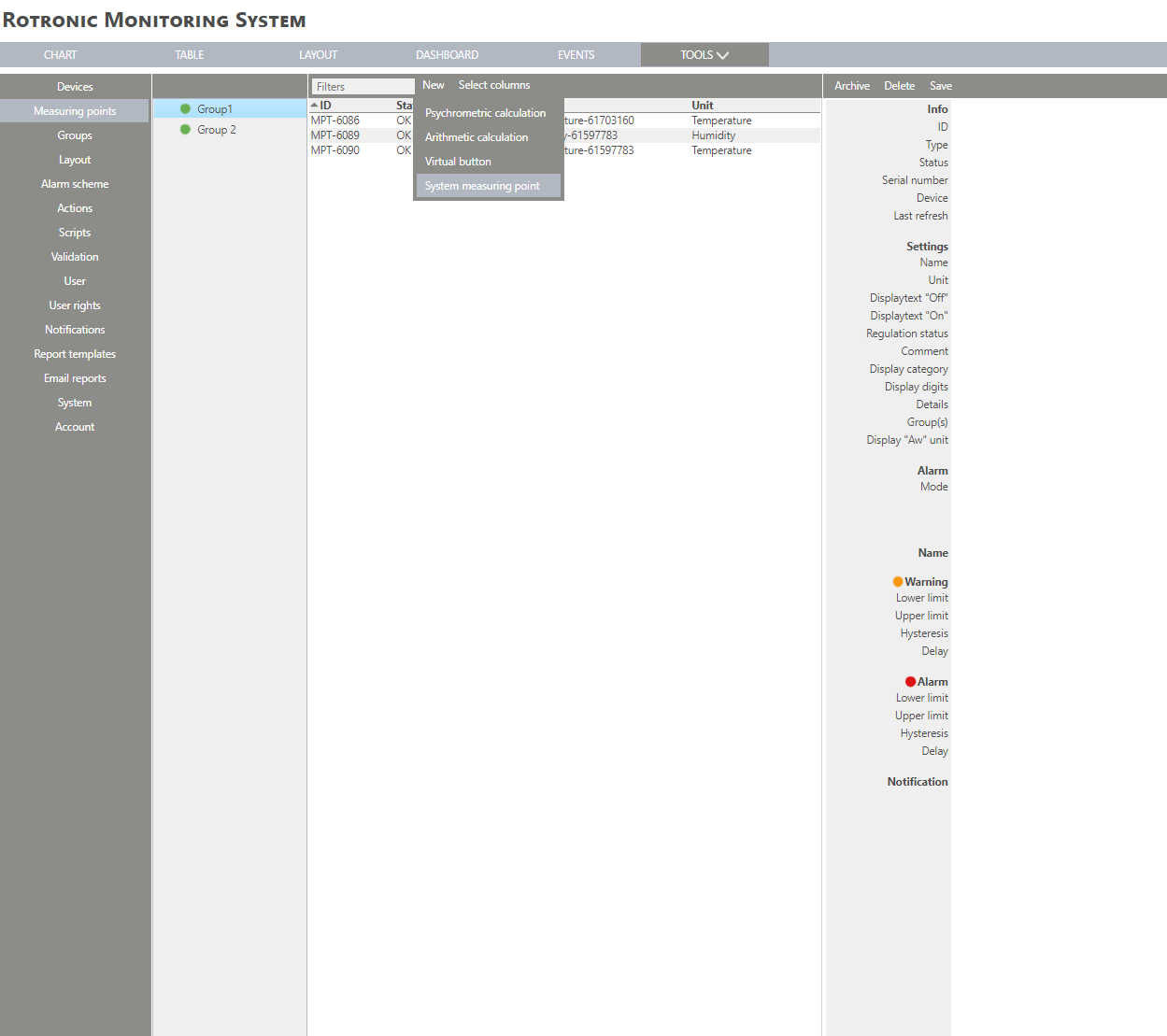

Step 3 Click on "New" > "System measuring point":
RMS add a system measuring point step 3

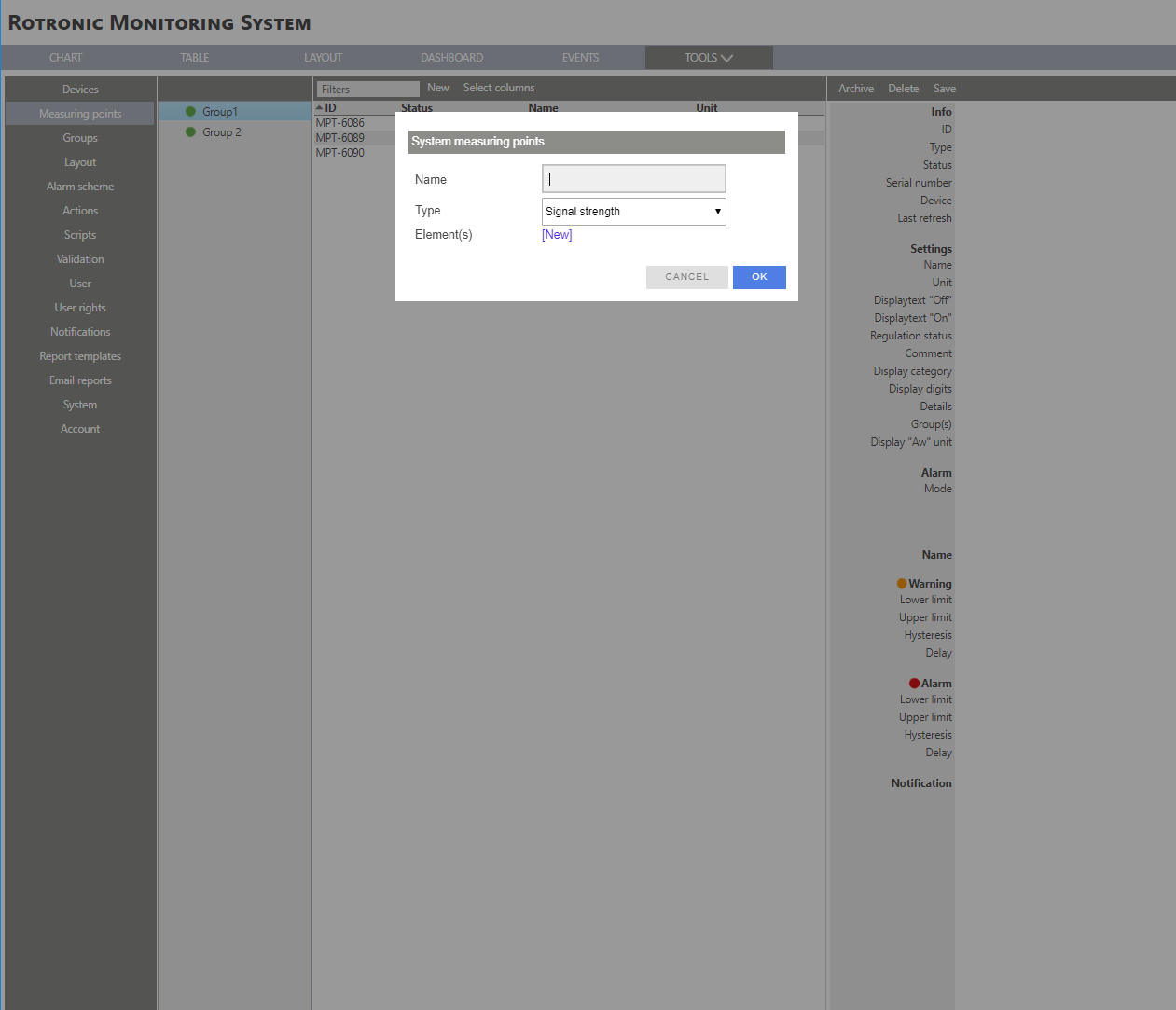

Step 4 The following window appears:
RMS add a system measuring point step 4
Step 5 Select a System measuring point from the drop down menu:
Please Note: On the RMS-CLD you will not see the Other system measuring points.

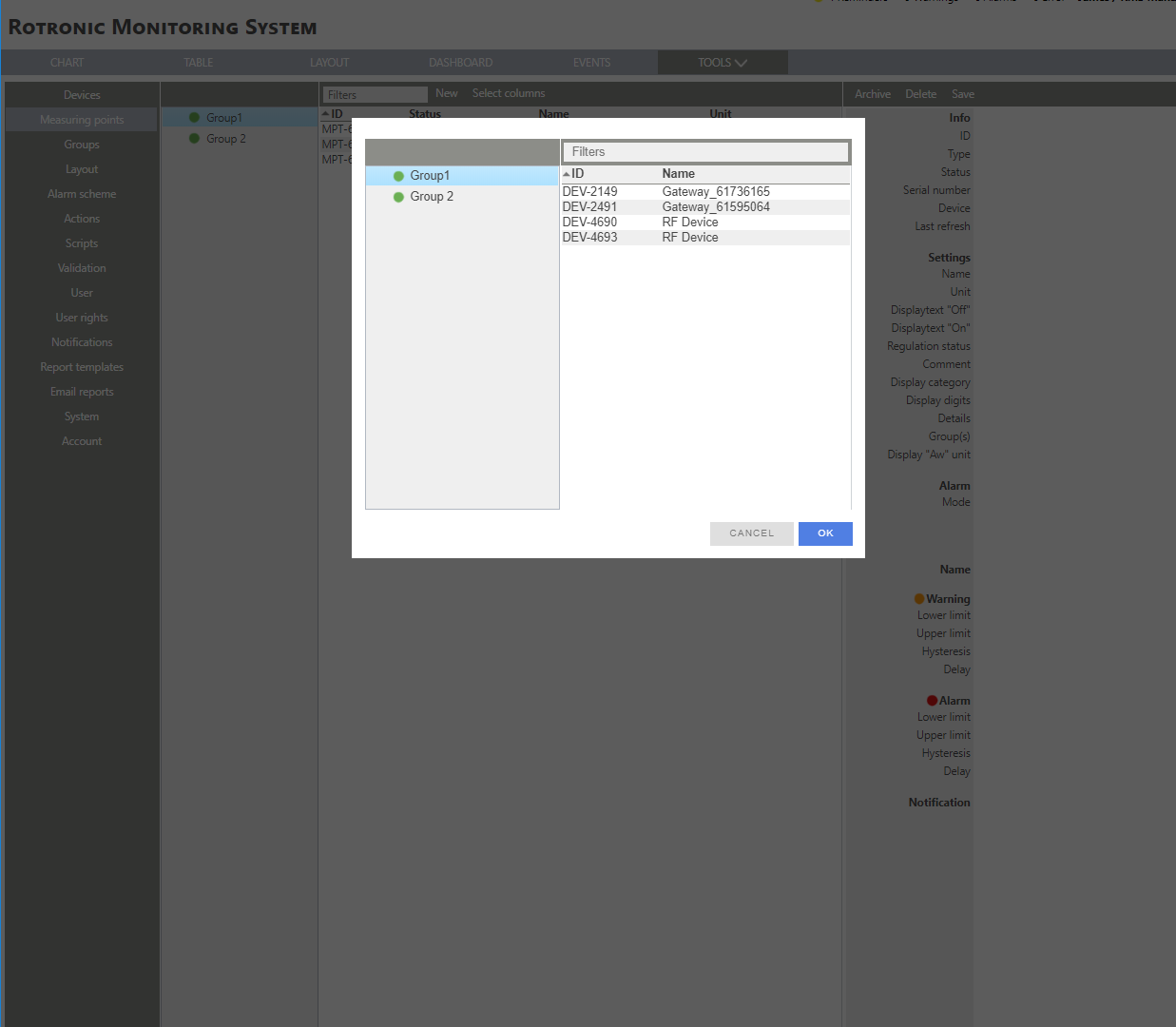

Step 6 Add an element by clicking on "New".
RMS add a system measuring point step 5

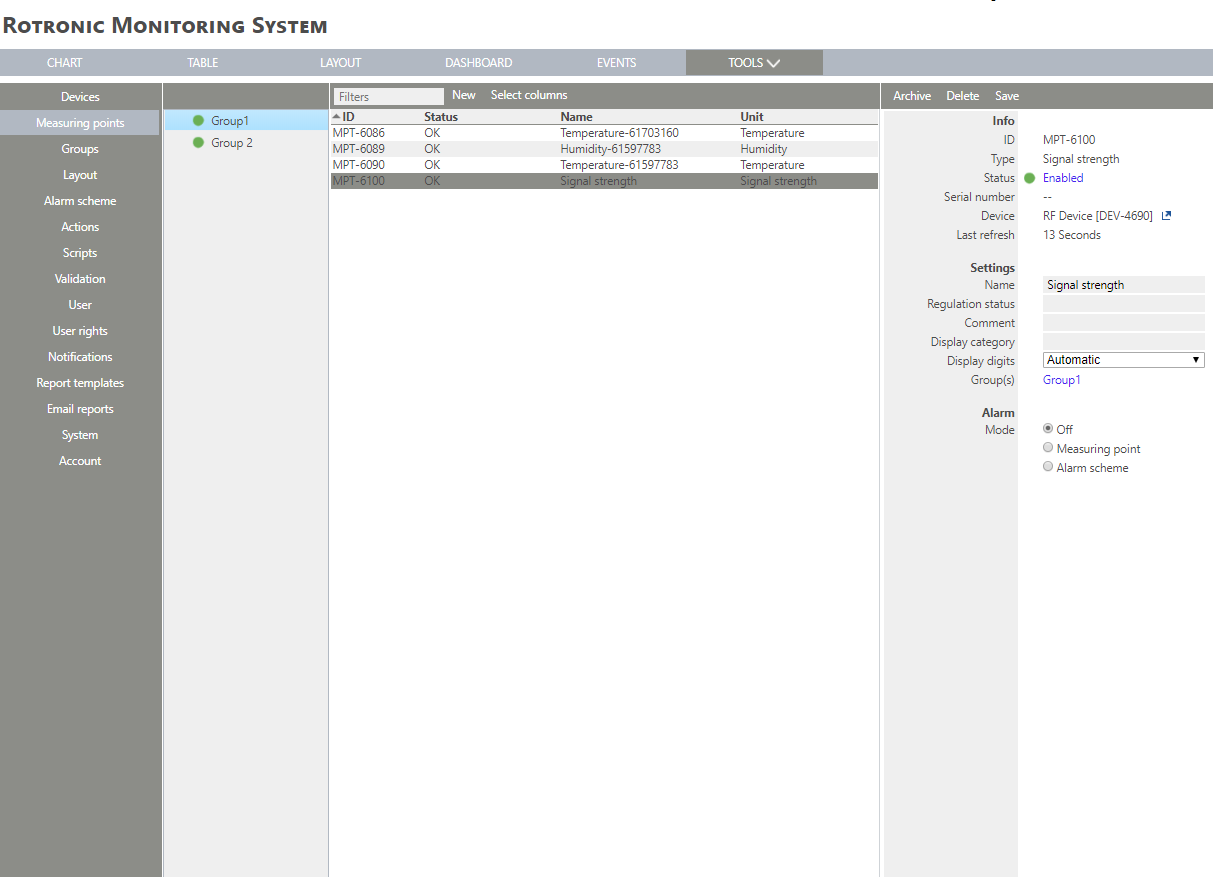

Step 7 Click on "OK" to generate the system measuring point:
RMS add a system measuring point step 6
Step 8 The System measuring point is added. The measuring point is also added to the chart.
