Add a Virtual Button

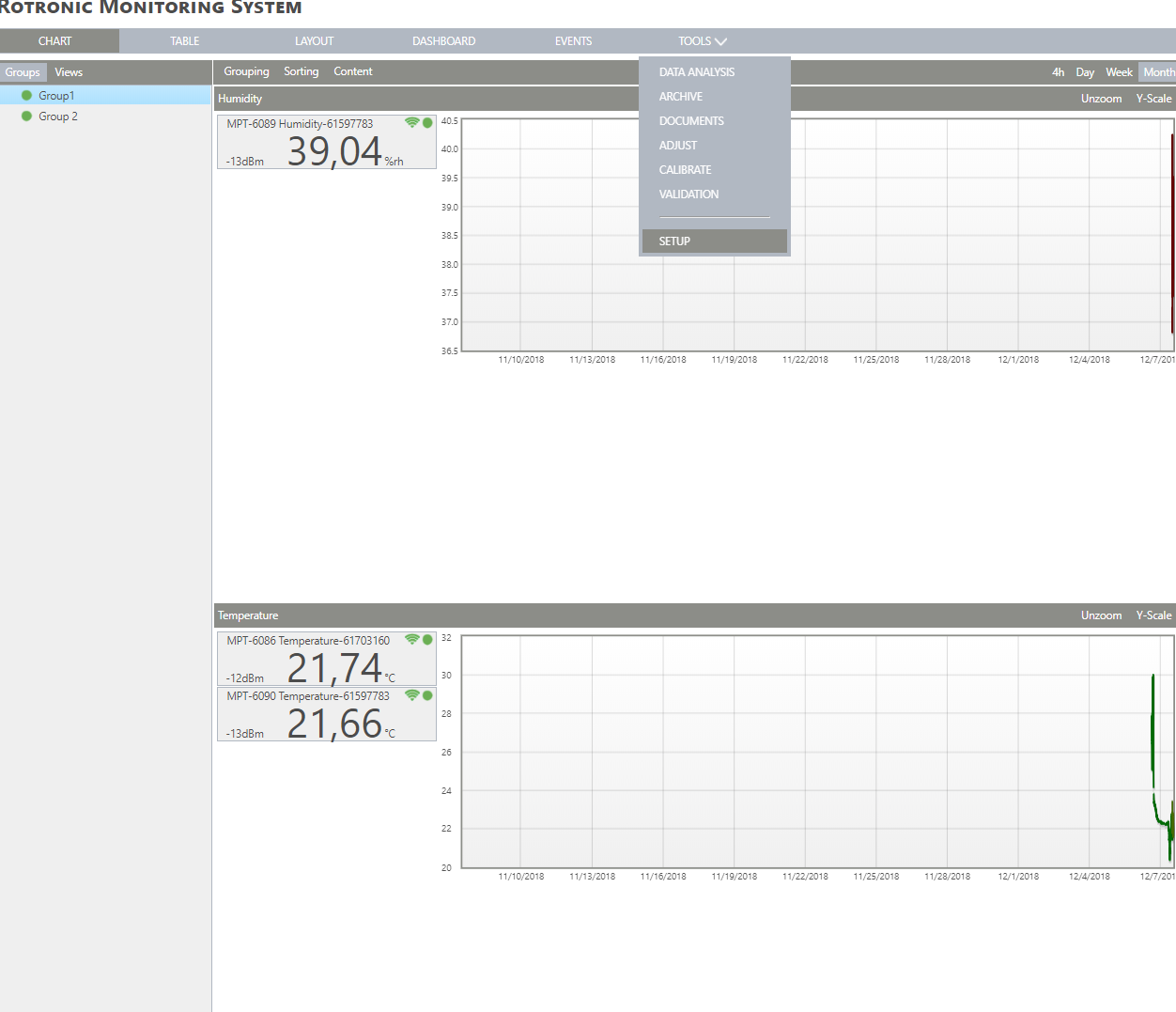

Step 1 From the start page, click on "Tools" > "Setup":
RMS add a virtual button step 1

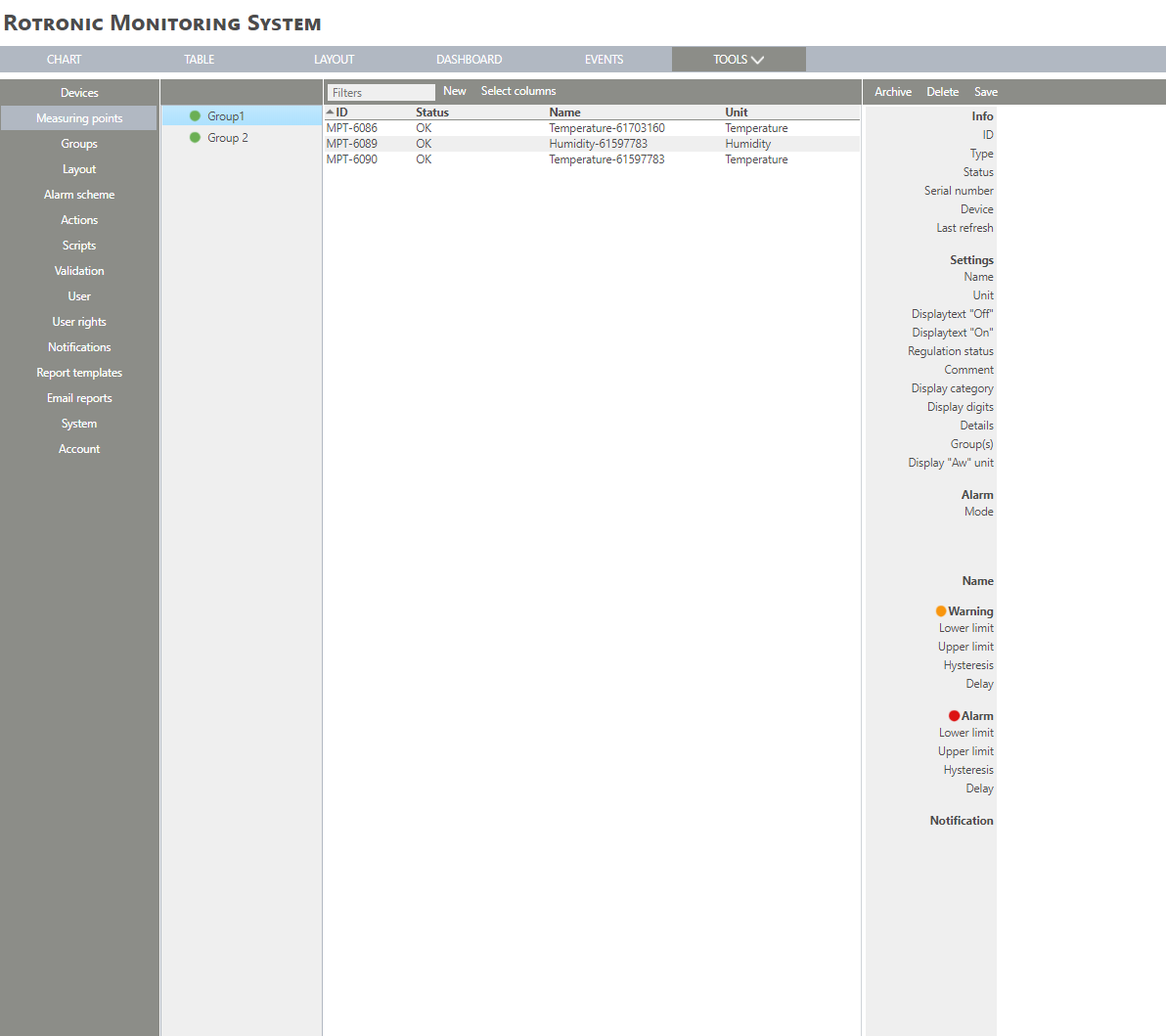

Step 2 On the left side, select "Measuring points":
RMS add a virtual button step 2

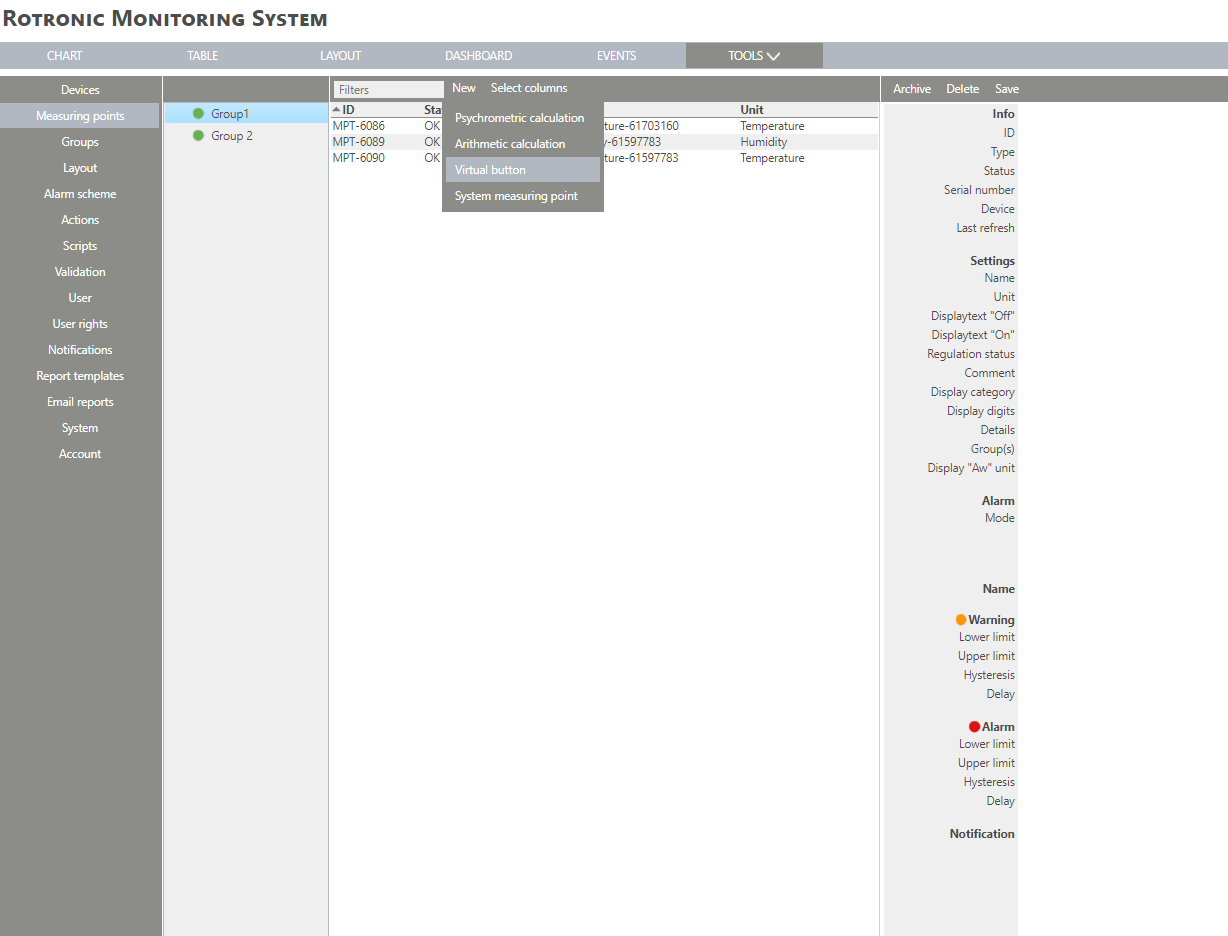

Step 3 Click on "New" > "Virtual Button":
RMS add a virtual button step 3

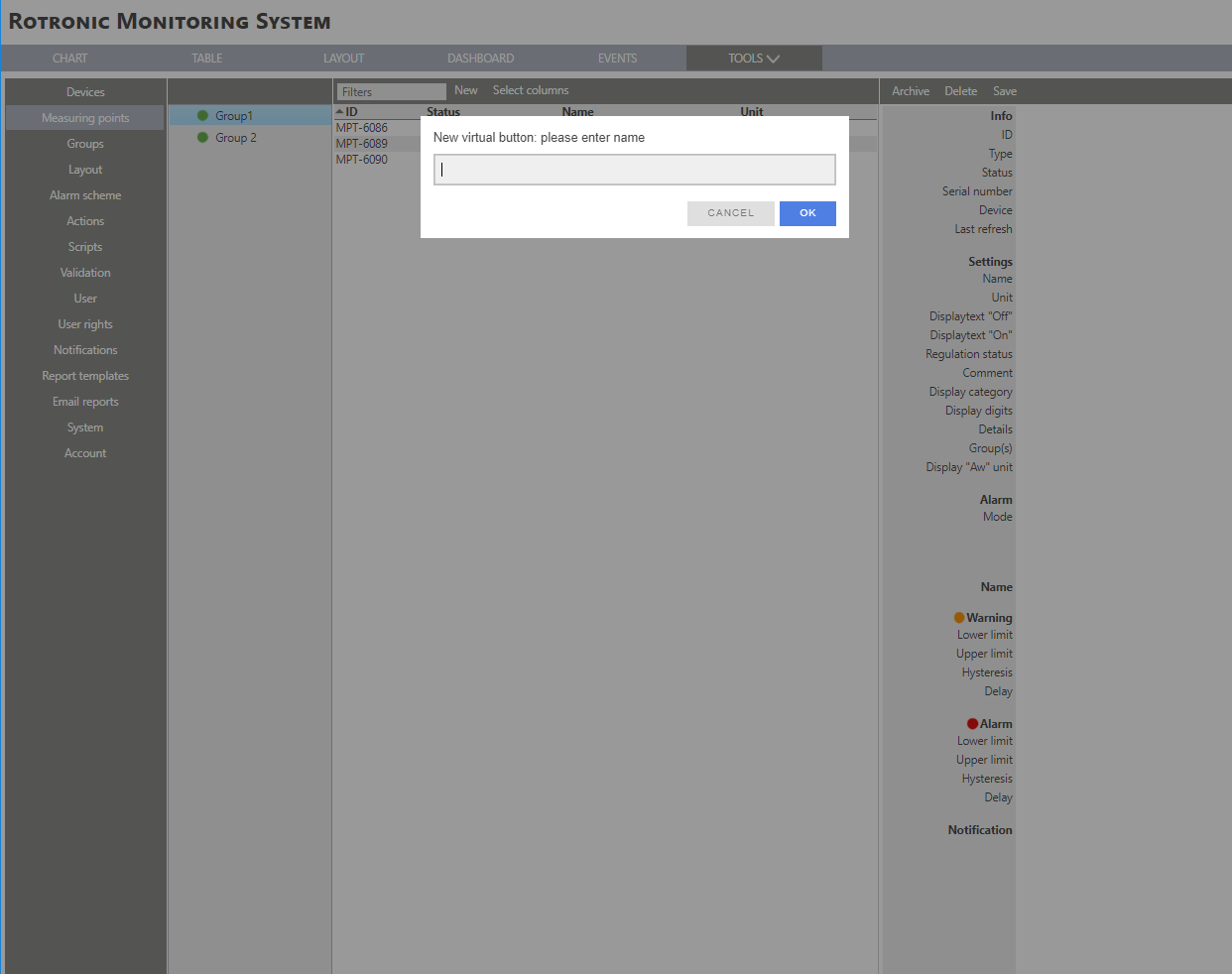

Step 4 The following window appears:
RMS add a virtual button step 4

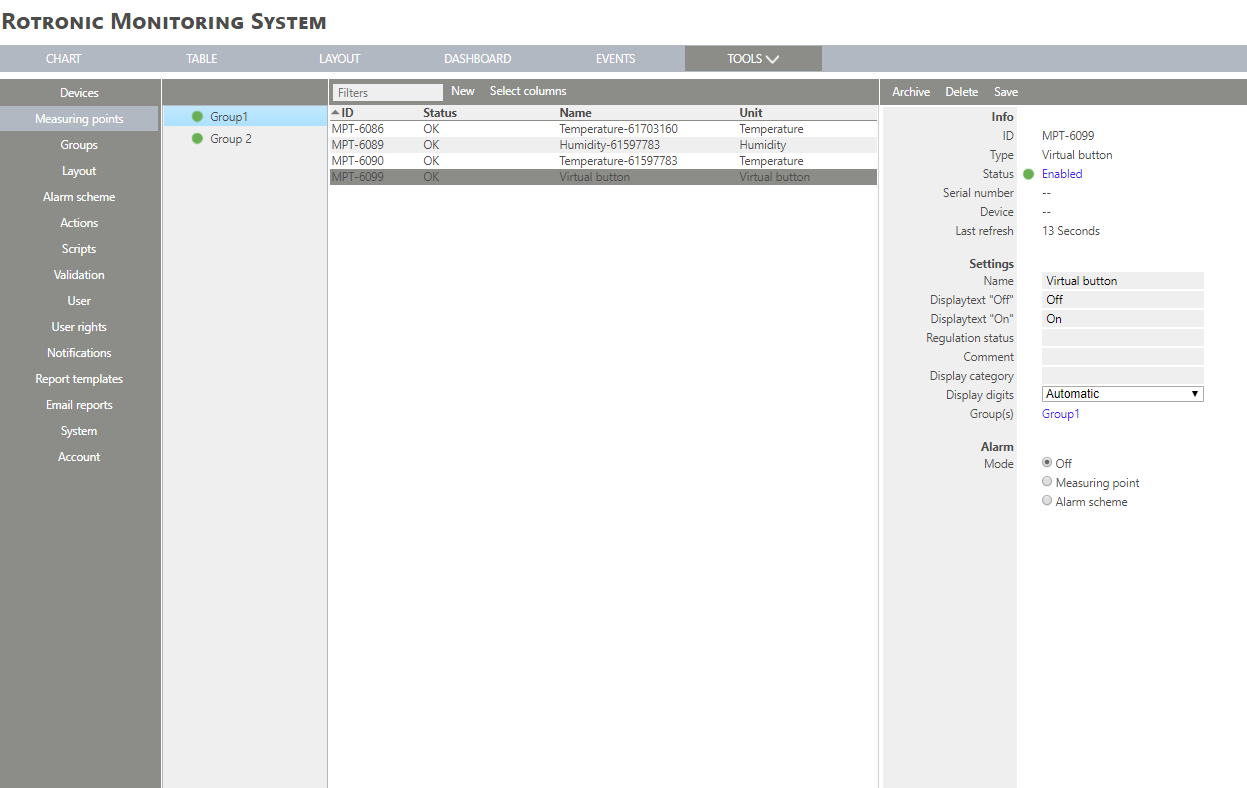

Step 5 Name:
Choose a name for the virtual button. Click on "OK" to generate the virtual button:
RMS add a virtual button step 5
Step 6 The virtual button is added. The measuring point is also added to the chart.
