Device Characterization

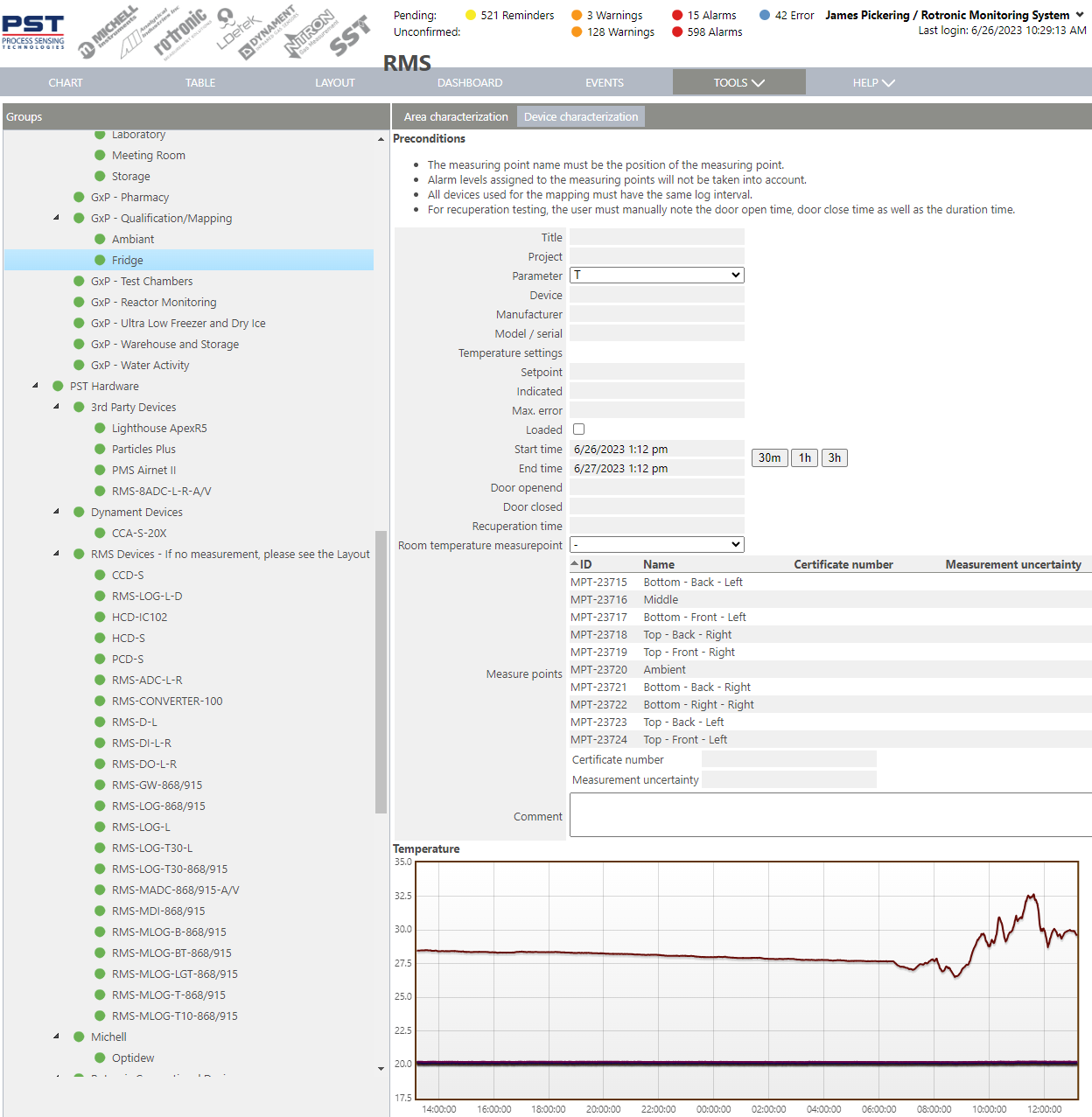

Print Screen 1 dev char

Preconditions:

  • The measuring point name must be the position of the measuring point.
  • Alarm levels assigned to the measuring points will not be taken into account.
  • All devices used for the mapping must have the same log interval.
  • For recuperation testing, the user must manually note the door open time, door close time as well as the duration time.

Parameter entry:

  • Title: The user can input a title for the device characterization.
  • Project: The user can input a project for the device characterization.
  • Parameter: select from either temperature (T), temperature and relative humidity (T+H) or temperature, relative humidity and CO2 (T+H+CO2)
  • Device: The user can input the name of the device for the device characterization.
  • Manufacturer: The user can input the name of the device manufacturer for the device characterization.
  • Model/serial: The user can input the name of the device model/serial number for the device characterization.

  • Temperature settings:

  • Humidity settings:

  • CO2 settings:

  • Loaded: select the tick box if the area is loaded. If a percentage is required, this can be added to the comments.

  • Start time: The user can define when the device characterization started.
  • End time: The user can define when the device characterization stopped.

It is possible to select predefined times: 30 minutes, 1 hour and 3 hours. The start and end time can also be changed directly by zooming in the chart.

  • Door opened: The user can input when the door was opened.
  • Door closed: The user can input when the door was closed.
  • Recuperation time: The user can input the recuperation time.

  • Room temperature measuring point: The user can select the measuring point from the group that is monitoring the room temperature.

  • Measure points: The measure points are automatically populated based upon the group selected.

  • Comments: The user can add comments.

Report Details:

  • Report:

  • Qualification date:

  • Project:

  • Equipment characterization:

  • Characterization overview:

  • Conclusion:

  • Measuring point overview:

  • Position overview (3 static images).

  • Measure point data:

  • Recuperation time.

  • Comments.
  • Signatures.
  • Statistical overview (glossary).

Updated: 13.02.2025
